Simple Home CAD Plan with Floor, Elevation, and Foundation Details

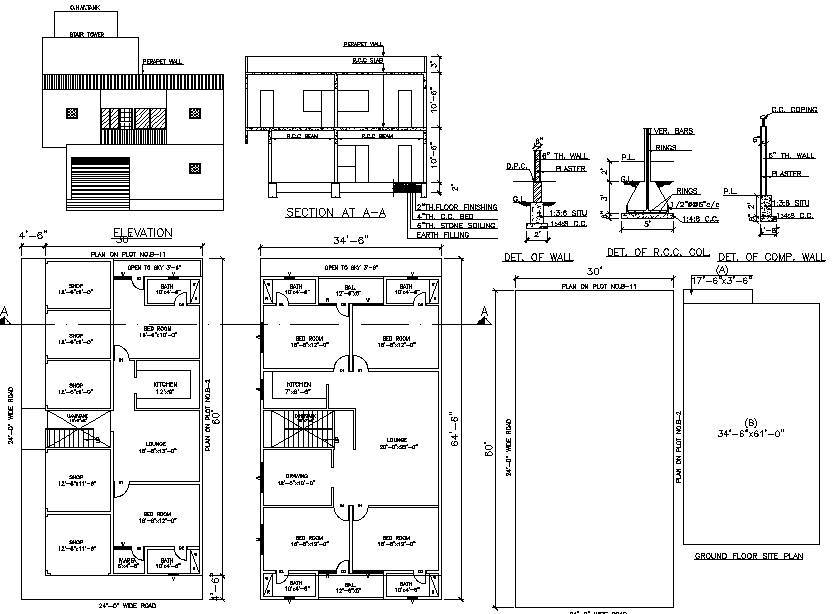

This AutoCAD-DWG file provides a comprehensive, simple home layout with detailed floor plans, elevation views, wall construction, R.C.C column details, and foundation layout. The drawing includes room dimensions such as lounges, bedrooms, kitchens, bathrooms, and shop spaces with precise measurements for accurate planning. It also features plot area details, structural alignment, and cross-sectional views to guide architects, civil engineers, interior designers, and builders in executing residential projects efficiently. The CAD file supports workflows in 3D Max, Revit, and SketchUp, allowing professionals to visualize designs, optimize space utilization, and maintain construction accuracy. With full measurement annotations, this layout ensures precise execution and practical implementation for residential home projects.
