Hospital Ground Floor Plan With OPD Emergency Lab And Canteen Layout

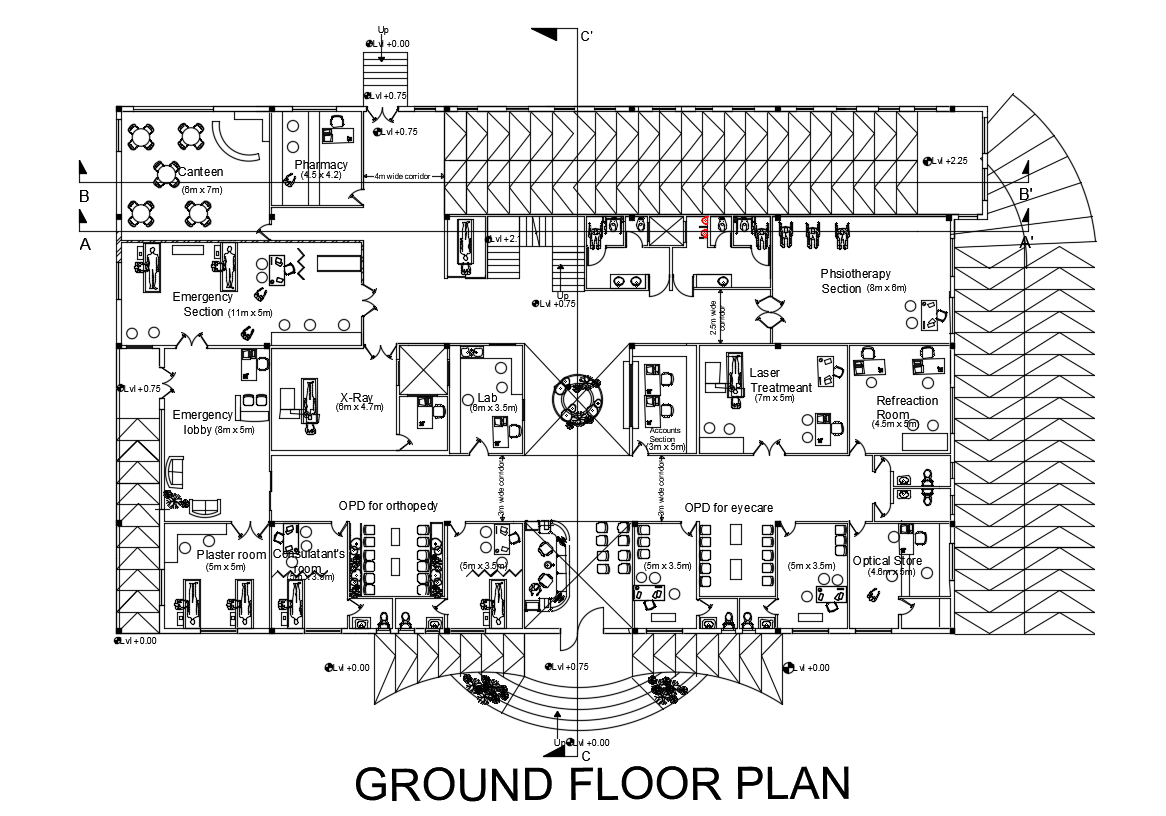

This hospital ground floor plan drawing presents a detailed healthcare facility layout designed with functional medical departments and organized circulation areas. The hospital ground floor plan shows OPD for eyecare with multiple consultation spaces sized around 5m x 3.5m, OPD for orthopedic treatment, and a dedicated emergency section measuring approximately 11m x 5m for urgent patient care. The layout also includes an X-ray room of about 6m x 4.7m and a laboratory space measuring 6m x 3.5m designed for diagnostic testing. A pharmacy area of approximately 4.5m x 4.2m is positioned near the corridor to provide convenient medical supply access. The drawing further shows an emergency lobby sized around 8m x 5m, which connects different departments and supports patient circulation within the hospital's ground floor plan layout.
