Constructive steel beam support on concrete column detail plan

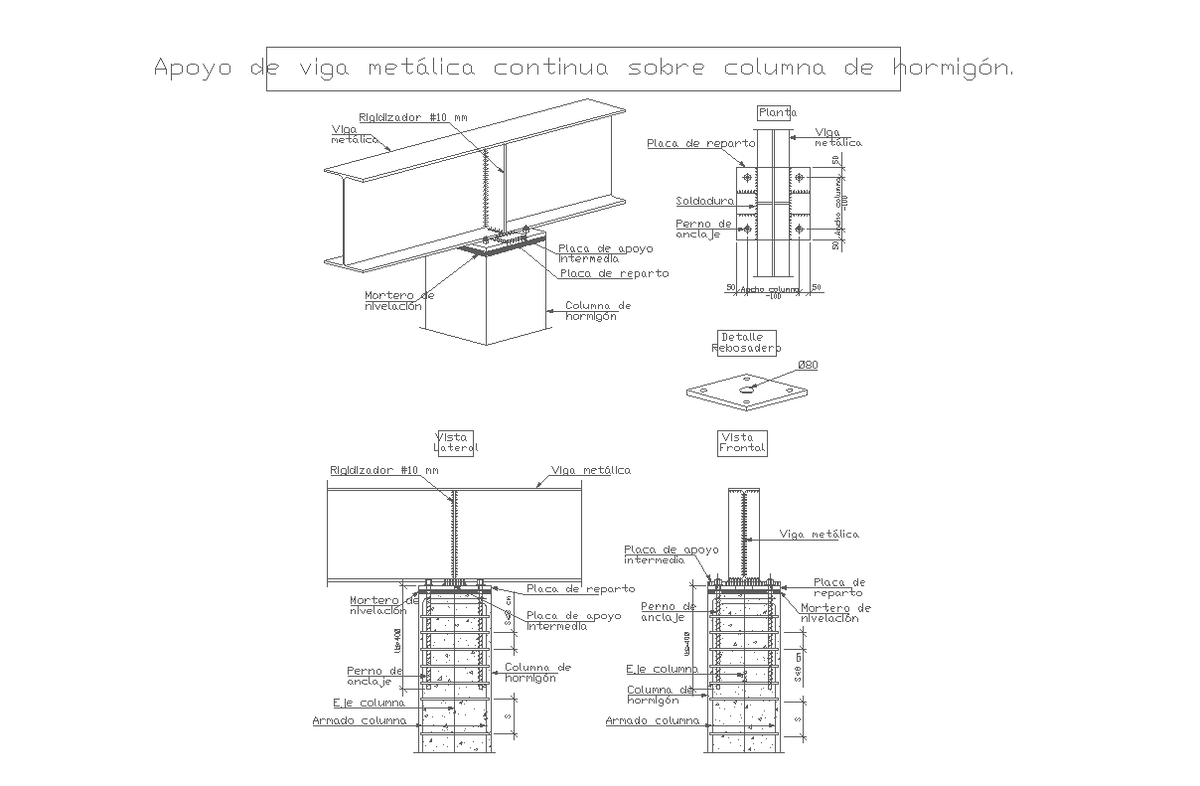

Constructive steel beam support on concrete column detail drawing showing structural beam connection base plate anchor bolt arrangement and reinforced concrete column section. The layout illustrates steel beam placement on column with support plate intermediate plate weld connection and leveling mortar layer used for structural alignment. Plan view and section views explain beam column joint configuration reinforcement arrangement and anchor bolt positioning for load transfer. This constructive steel beam support on concrete column detail drawing helps civil engineers understand structural connection design used in reinforced concrete and steel structure construction planning.
