Metal Frame Section CAD DWG File with Measurements and Door Frame
Tags
#metal frame CAD#door frame DWG#wall section drawing#metal frame detail#AutoCAD frame plan#construction DWG file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

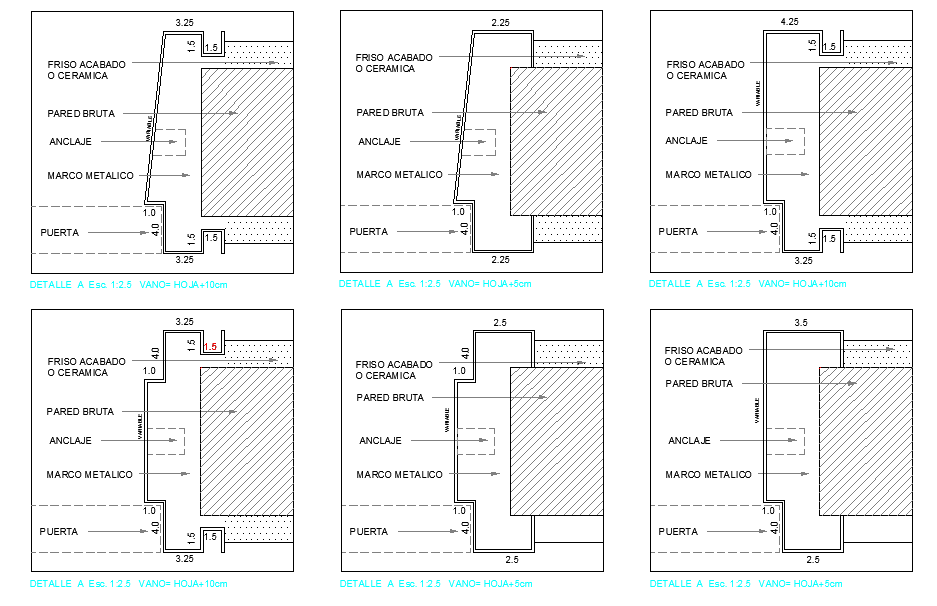

This Metal Frame Section Detail CAD DWG file provides accurate technical drawings of door frames, wall interfaces, and metal framing sections. The AutoCAD file features detailed measurements including width, height, and spacing for door panels, metallic anchors, and wall finishes. Each drawing illustrates the proper alignment of frames, placement of ceramic or plaster finishes, and structural details necessary for professional installation.
