Cavity Wall Construction Section Details Drawing With Levels

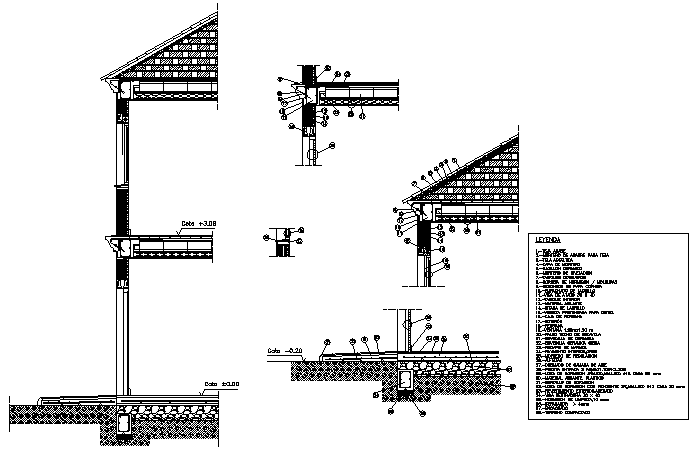

The cavity wall construction section detail drawing in this AutoCAD file presents a clear architectural representation of wall construction with sectional detailing and level annotations. The drawing illustrates the structural composition of a cavity wall system, including inner and outer wall layers, insulation space, and structural support elements. The sectional views explain how the cavity wall connects with the roof structure, floor slab, and foundation base. Level indications such as level plus three point zero eight and level minus zero point two zero are shown in the drawing to define the vertical alignment of the building components. The cavity wall section detail drawing helps users understand the relationship between the wall layers, structural frame, and roof support system used in building construction.
