Septic Grave Construction Detail With Underground Waste Tank

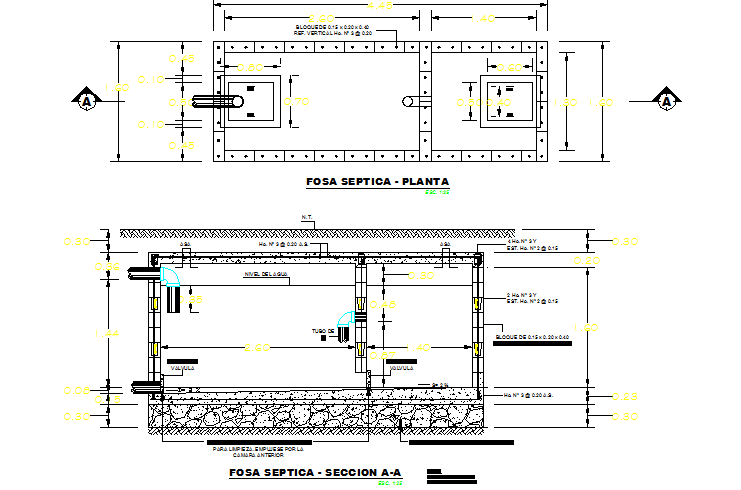

A septic grave construction detail drawing presents the structural layout of an underground wastewater collection chamber used for sanitation systems in residential or small building projects. This AutoCAD files drawing illustrates the septic grave structure showing the underground chamber configuration, inlet pipe connection, internal storage space, and covering slab arrangement. The septic system works as part of an on-site wastewater system where sewage from buildings flows into a buried chamber for primary treatment and storage. Inside the tank, heavier solids settle at the bottom, forming sludge, while lighter materials float at the top, and the partially treated liquid moves toward the disposal system.
