Swimming Pool Handrail Fixing Detail With Membrane Anchor Plate Layout

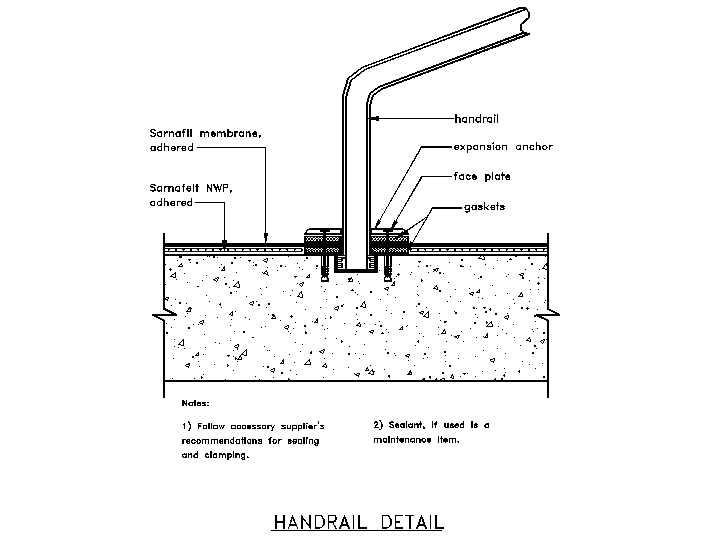

This drawing presents a detailed construction layout of swimming pool handrail installation with membrane protection and structural anchoring. The design clearly illustrates the placement of the stainless steel handrail embedded into the reinforced concrete pool deck using expansion anchors, face plates, and gasket connections. The section also shows the integration of waterproofing systems, including Sarnafil membrane adhered layer and Sarnafelt NWP protection membrane. These components ensure watertight sealing around the anchoring system while maintaining structural stability for the pool safety handrail installation. Engineers and designers can observe how the handrail base plate is fixed to the concrete slab with proper sealing and compression elements to prevent leakage around the fixing points.
