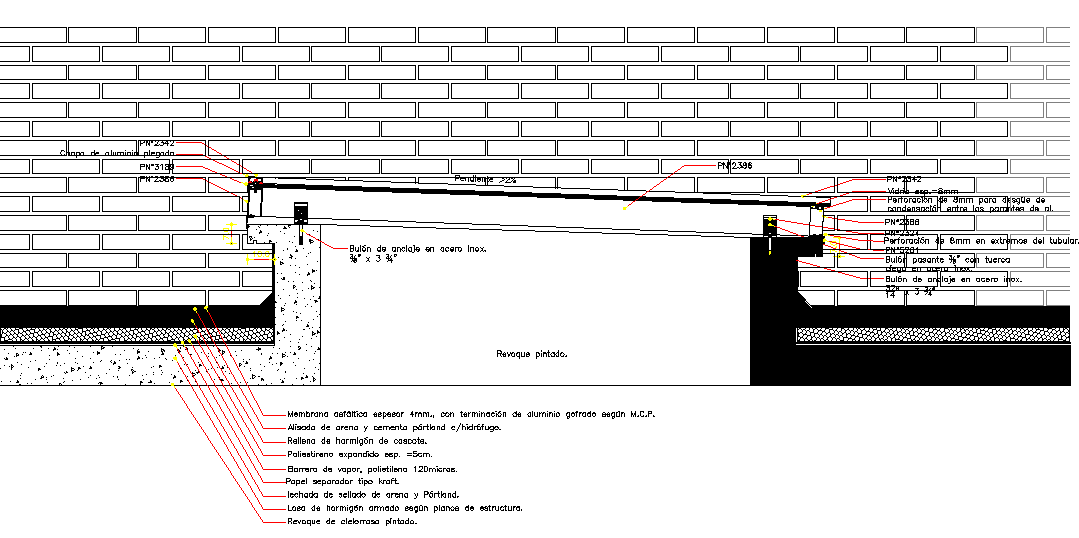

Skylight Section Detail with Glass and Structural Layers AutoCAD DWG

This AutoCAD DWG file provides detailed sectional drawings of a skylight, including glass panels, an aluminum frame, insulation, and a supporting concrete structure. The drawing shows precise dimensions for panel thickness, slope, anchor bolts, and sealing layers, offering architects, civil engineers, and builders a comprehensive guide for accurate installation. Each section highlights waterproof membranes, plaster finishing, and reinforcement placement to ensure structural stability, weatherproofing, and energy efficiency. CAD professionals can efficiently visualize, edit, and integrate this skylight design into residential or commercial building projects. Fully layered and compatible with AutoCAD, Revit, SketchUp, and 3D Max, this DWG supports material estimation, construction planning, and compliance with structural and thermal standards.
