Isolated Footing CAD Detail with Plan, Front Elevation, and Structural

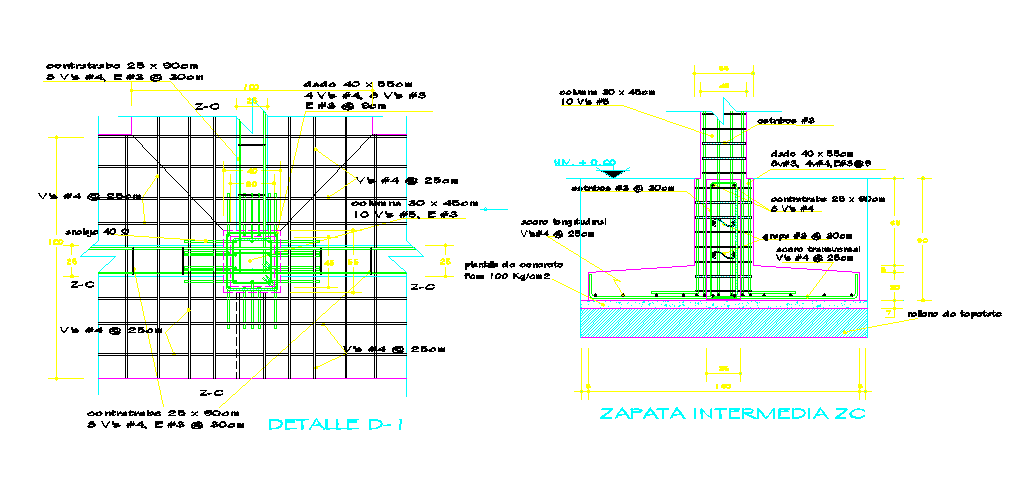

This AutoCAD DWG file provides detailed information for designing isolated footings, which are individual foundation elements used to support a column. The drawing includes a detailed plan of the isolated footing, along with its front elevation, showcasing various shapes such as circular, square, or rectangular slabs of uniform thickness. The drawing also covers stepped footings, which are used to spread the load over a larger area, ensuring better load distribution. The CAD file provides accurate measurements for each footing type, material specifications, and reinforcement details, making it ideal for architects, civil engineers, and builders involved in foundation design. The file is compatible with AutoCAD, Revit, 3D Max, and SketchUp, enabling seamless integration into larger construction projects.
