Structural Wall Connection Detail with Expansion Joint CAD Layout

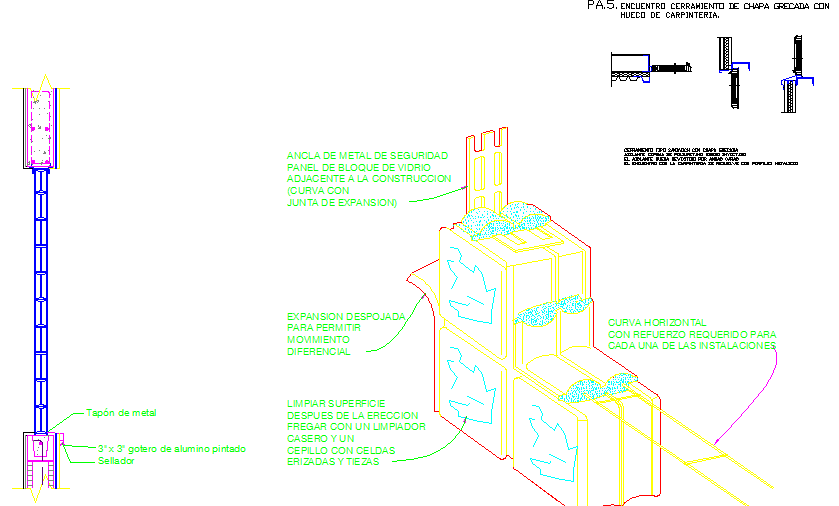

This AutoCAD drawing presents a detailed structural wall connection layout showing the arrangement of construction elements and reinforcement components. The drawing illustrates a block wall assembly, a curved reinforcement section, and a metal anchor support used for structural stability. It explains the relationship between the wall blocks, reinforcement materials, and the expansion joint provided to accommodate differential movement between structural elements. The drawing also includes annotations showing metal security anchor installation and reinforcement placement for structural support.
