Sheet Rock Wall with Plates Section Detail Construction Drawing

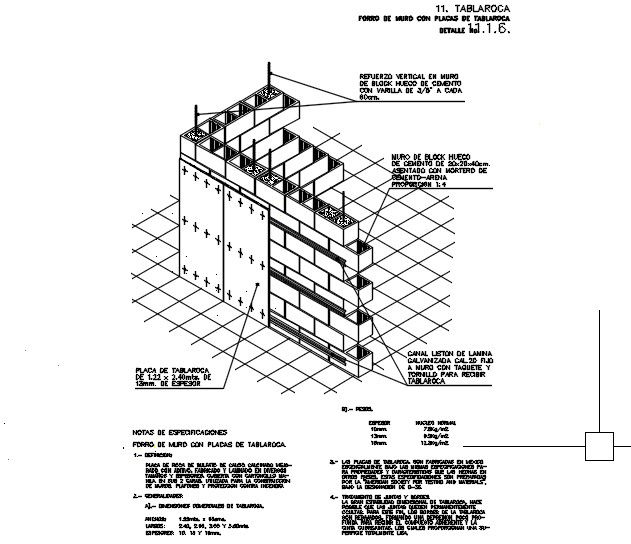

The sheet rock wall with plates section detail construction drawing that illustrates the structural arrangement of drywall panels installed over a masonry block wall structure. This technical drawing presents an isometric sectional view showing the integration of sheet rock plates fixed to a hollow concrete block wall using support channels and fastening elements. The drawing highlights the arrangement of drywall boards, metal support framing, fastening screws, and finishing layers that create a smooth interior wall surface. Dimension indicators and annotations explain the spacing of the metal channels, drywall panel alignment, and reinforcement positions used to support the sheet rock wall system.
