Concrete Block Wall Facade Section Construction Detail Design

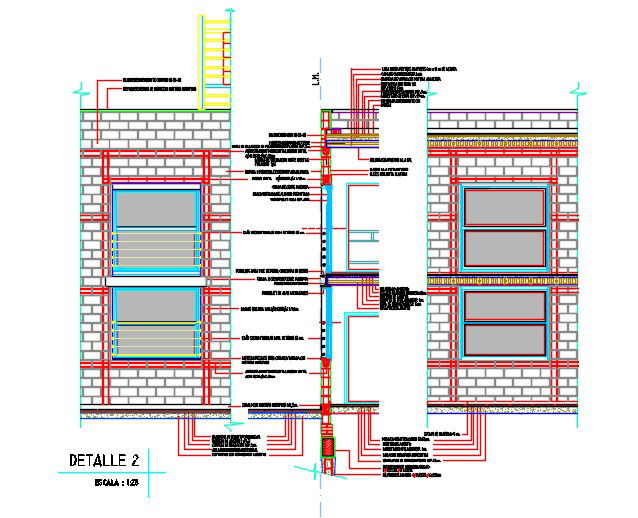

The Concrete Block Wall Facade Section drawing presents a detailed architectural section illustrating the construction of a building façade using concrete block masonry walls. The drawing shows the vertical sectional view of the façade, including window openings, reinforced concrete elements, and structural alignment of the masonry wall system. Concrete blocks are arranged in horizontal courses with mortar joints to form a stable exterior wall structure. The section detail also highlights the integration of reinforced concrete columns, beams, and structural frames that support the façade and distribute building loads across the structure.
