Drawer Pass Roadway Plan Layout with Retaining Wall 6.75m Span

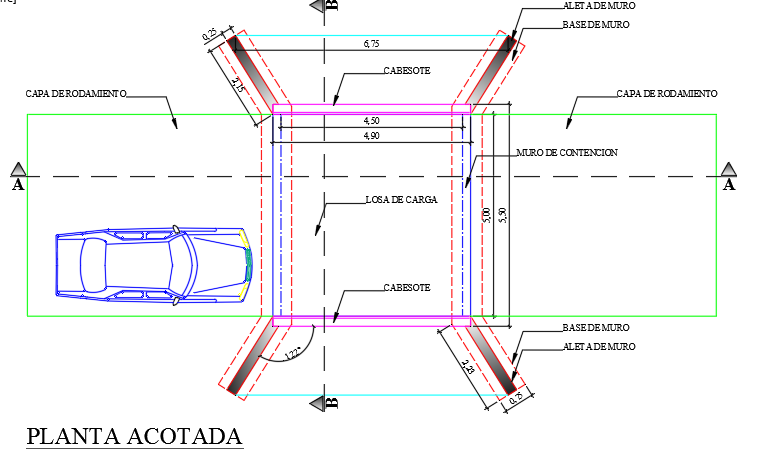

The Drawer Pass Roadway Plan Layout drawing presents a detailed AutoCAD design of a roadway passage integrated with structural retaining wall elements and a load-bearing slab arrangement. The drawing illustrates a precise roadway crossing layout with a clear span of 6.75 m and an internal roadway opening of approximately 4.50 m to 4.90 m, ensuring safe vehicle passage. The plan includes clearly labeled structural components such as cabesote beam supports, load slab section, roadway surface layer, and retaining wall construction. Dimensional annotations define the structural spacing, wall alignment, and roadway boundaries with accurate engineering measurements. The roadway plan also highlights the base of the wall and wing wall positioning, showing the structural transition between the roadway embankment and containment walls.
