Hotel Layout Plan With Room Arrangement And Detailed Floor Design

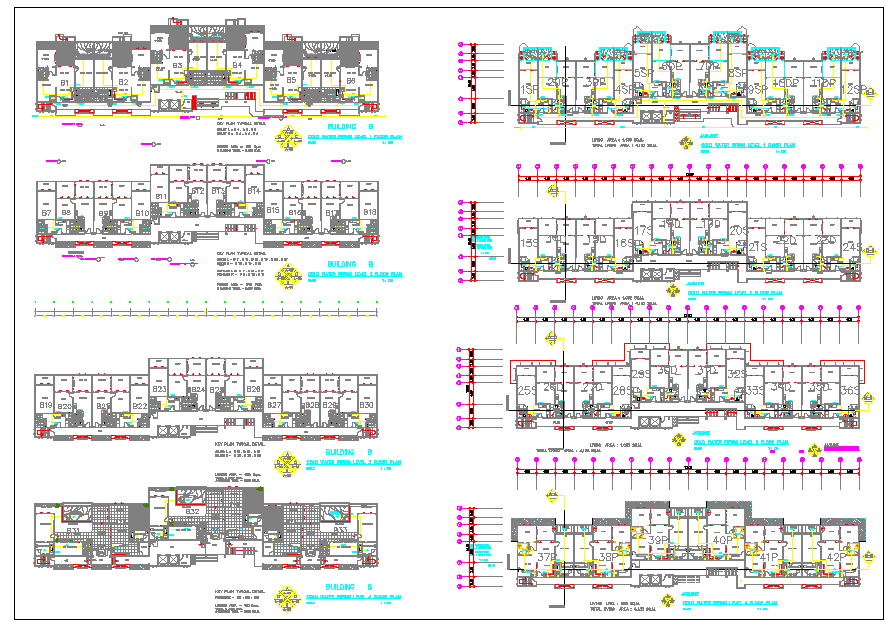

The Hotel Layout Plan with Detailing drawing presents a comprehensive architectural layout designed for modern hospitality building development. The drawing includes multiple floor layout plans showing organized hotel room arrangements, circulation corridors, service areas, and structural planning for efficient guest accommodation management. Each floor plan illustrates clearly defined guest rooms, internal passageways, staircase access points, and building circulation zones designed to support comfortable hotel operations. The layout also highlights structural grid alignment and building organization, which helps architects and civil engineers understand the spatial distribution of hotel rooms and internal service areas across the building.
