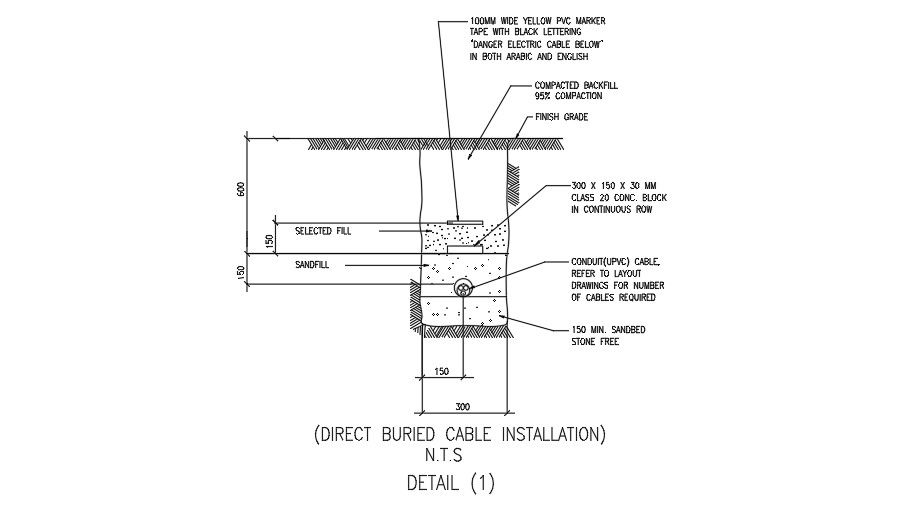

Detail buried cable insulation


Here Detail buried cable insulation including 300mm x100mmx 30mm in block continuous row , 150mm sanded stone free Insulation. Around the conductor, it is necessary to provide insulation to prevent electrical short circuits. Each core or conductor is provided with a suitable thickness of insulation, the thickness of layer depending upon the voltage to be withstood by the cable. For more detail download this file.

File Type: DWG File ID: 253184
