Door Frame Detail With Aluminum Profile And Wall Section Plan

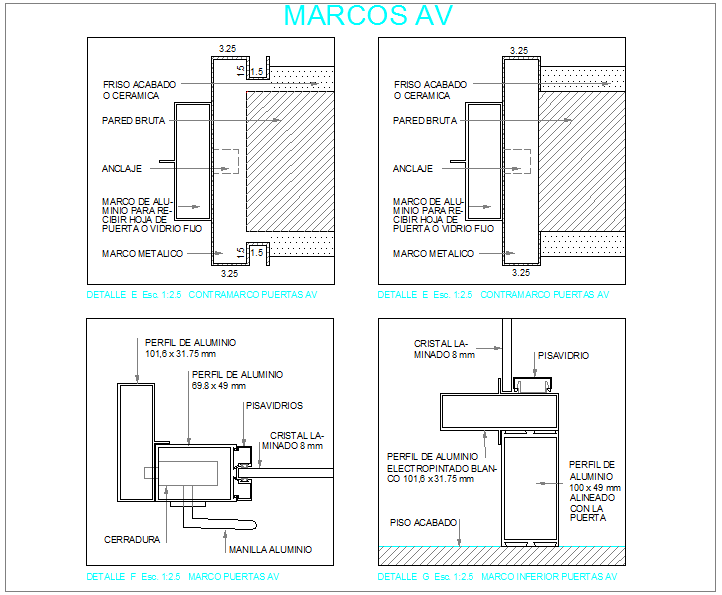

This AutoCAD drawing presents a detailed door frame detail with aluminum profile and wall section plan including precise construction dimensions. The file includes multiple sectional views showing frame positioning within gross wall, anchorage detail, and finishing layers such as ceramic edge and wall surface. It highlights aluminum frame profiles with sizes like 101.6 x 31.75 mm and 100 x 49 mm along with glass panel thickness of 8 mm. The drawing clearly shows handle placement, lock position, and alignment of door leaf within frame using dwg files and AutoCAD files for accurate design reference.
