Details of side lining junction.

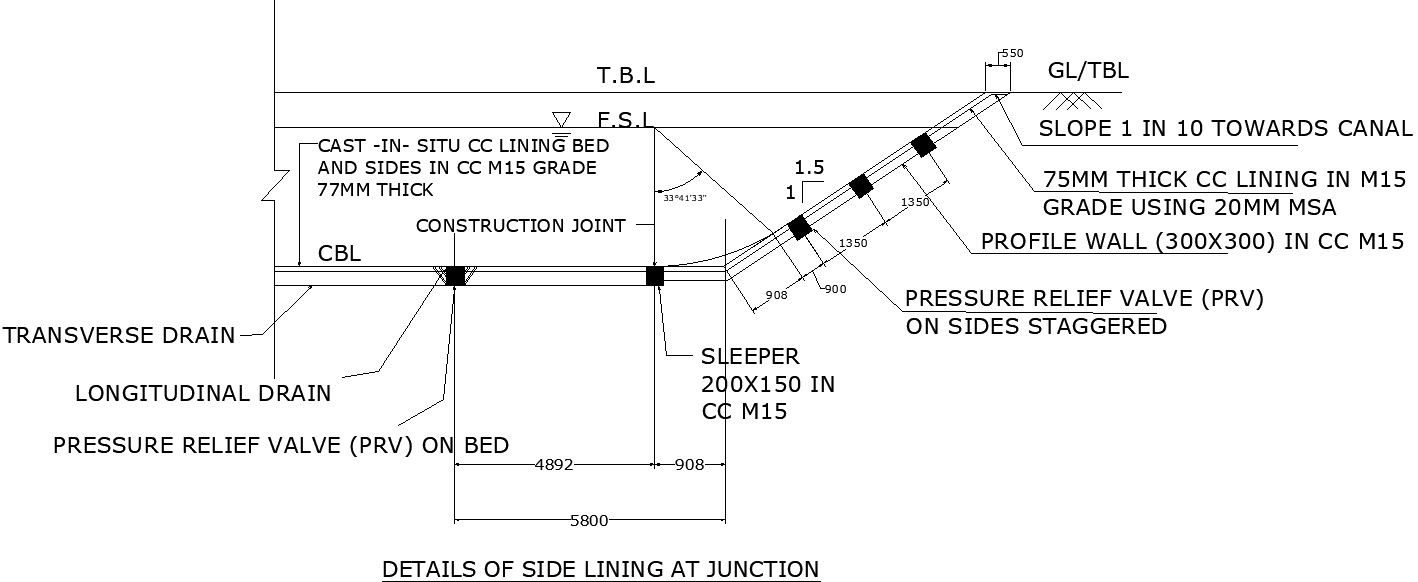

This Architectural Drawing is AutoCAD 2d drawing of Details of side lining junction. Canal lining is the process of reducing seepage loss of irrigation water by adding an impermeable layer to the edges of the trench. Seepage can result in losses of 30 to 50 percent of irrigation water from canals, so adding lining can make irrigation systems more efficient. For cement concrete lining, the safe limiting velocity is 2.7 m/s. For boulder lining, it is 1.5 m/s and for burnt clay tile lining it is approximately 1.8 m/s. This serves as a guide for selecting canal slopes and alignments. For more details and information download the drawing file.
