Typical details of stirrups

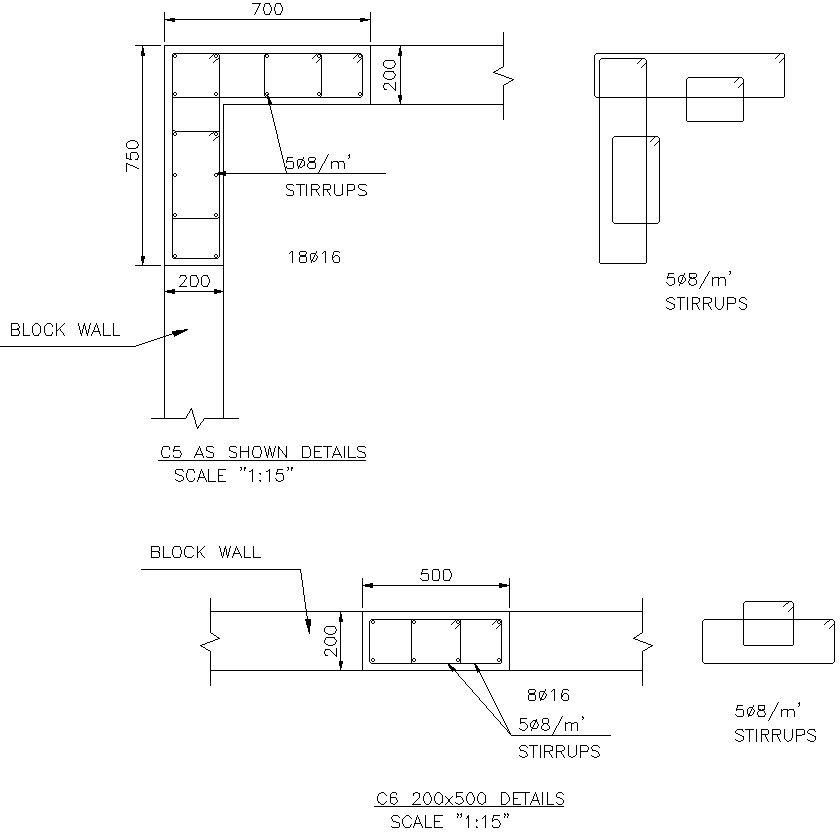

This Architectural Drawing is AutoCAD 2d drawing of Typical details of stirrups. Stirrups must be bend in rolls with a diameter at least equal to 4Ø, i.e. for Ø 10 they must have a diameter greater or equal to D = 40 mm. c. The distance between the legs of a closed stirrup. These must be placed no more than 200 mm apart from each other (e.g. a column 500x500 must have three stirrups at each layer). For more details and information download the drawing file.
