Typical details of stirrups placed in column

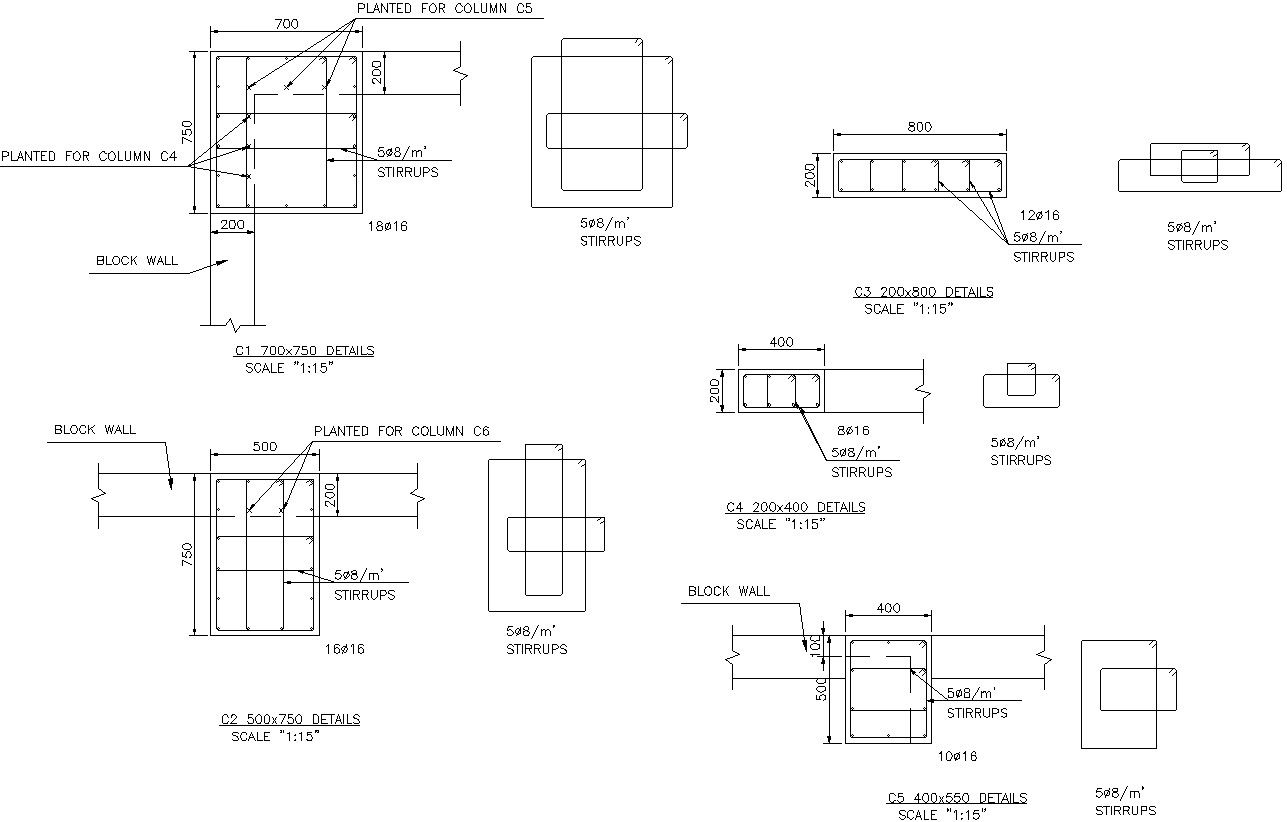

This Architectural Drawing is AutoCAD 2d drawing of Typical details of stirrups placed in column. A stirrup is a closed rebar loop that is used to hold the main rebar together in an RCC structure. In one column, the stirrups provide lateral support to the main bars against buckling. The lateral stirrups provided can be two-legged stirrups, four-legged stirrups or six-legged stirrups etc depending on the column cross-section and the number of vertical or longitudinal reinforcement bars employed. For more details and information download the drawing file.

File Type: DWG File ID: 255386
