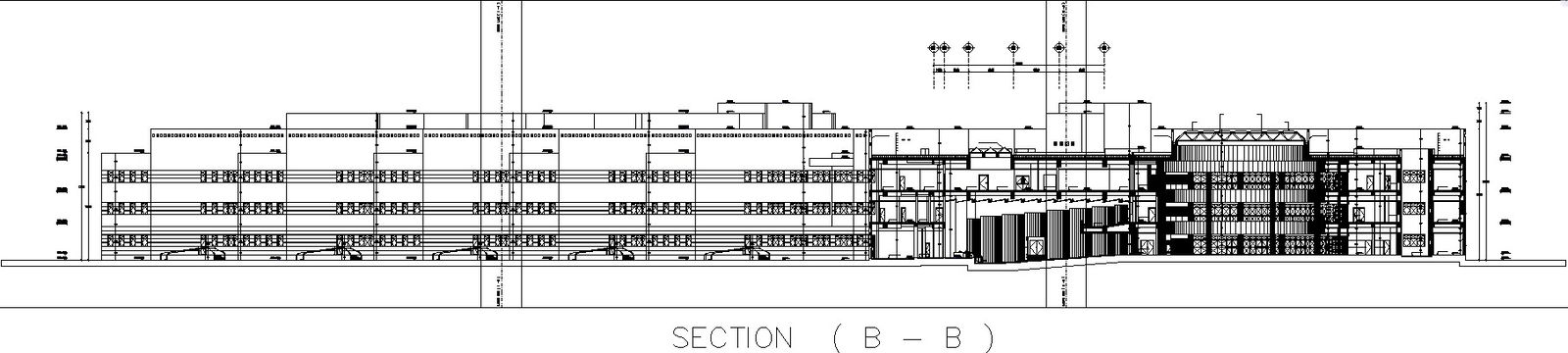

Back elevation of an industrial plant


Description

This Architectural Drawing is AutoCAD 2d drawing of Back elevation of an industrial plant. Elevations show how your property will appear from various perspectives. There are several forms of elevation in relation to these precise angles. Front elevations, side elevations, rear elevations, and split elevations are some examples. An elevation drawing is an orthographic projection drawing that shows one side of the house. The purpose of an elevation drawing is to show the finished appearance of a given side of the house and furnish vertical height dimensions. Four elevations are customarily drawn, one for each side of the house. For more detailsand information download the drawing file.




File Type: DWG File ID: 255479
