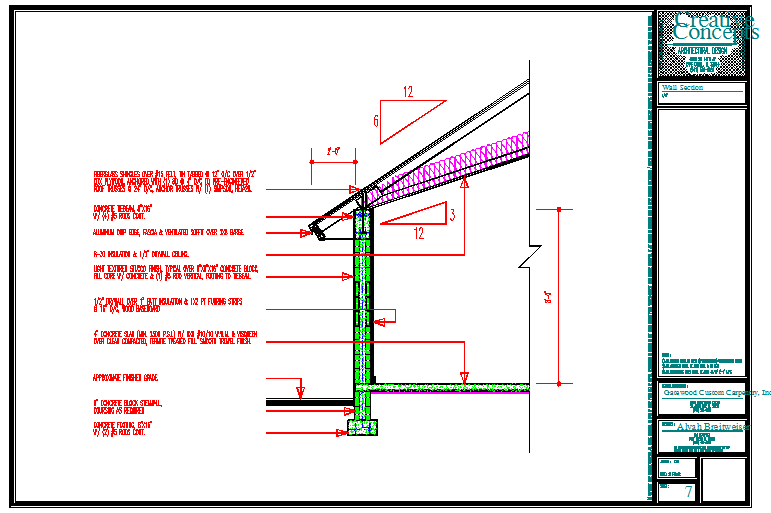

Roof Section Detail with Fiberglass Shingles and Soffit Design Plan

This roof section detail drawing provides a comprehensive view of a sloped roof construction with precise material layering and dimensional clarity. The roof section detail includes fiberglass shingles installed over #15 felt, secured with tin tabbing at 12-inch on-center spacing over a 1 2 inch base. The drawing also highlights aluminum drip edge installation along the roof perimeter, along with fascia board and ventilated soffit supported on 2x6 barge members. Each component is clearly annotated to ensure an accurate understanding of structural alignment and roofing assembly within the architectural roof section detail.
