Multi storey building elevation section with facade layout dimensions

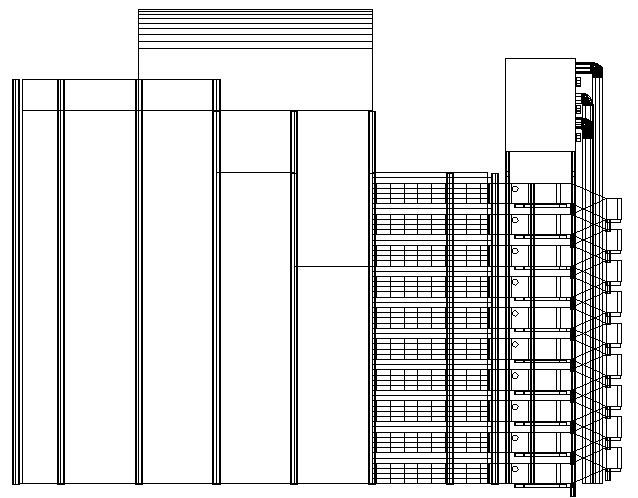

This multi storey building elevation section drawing presents detailed vertical layout including facade structure, floor levels, balcony alignment, and wall divisions with accurate dimensions. The drawing shows elevation with repetitive floor patterns, window positioning, and structural grid alignment for proper planning. Sectional representation highlights floor slabs, vertical circulation, and external facade detailing. Prepared using dwg files and AutoCAD standards, this drawing ensures precise scaling and clarity. It is useful for architects and engineers to understand building elevation design, structural organization, and facade composition for high rise construction projects.
