Mesh-to-B type L knob support tube knot details dwg file


Description

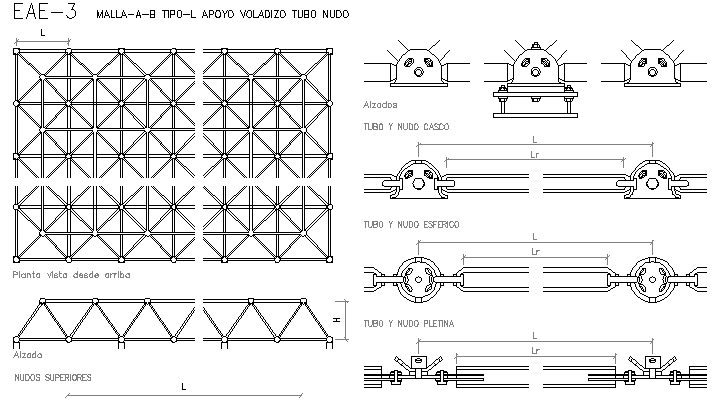

Mesh-to-B type L knob support tube knot details dwg file. Mesh-to-B type L knob support tube knot details that includes a detailed view of plant seen from above, raised, upper knots, lower knots, supports for tube and knot, pipe and nude, tube and knot pletina and much more of knob details.



Vaishali
India
File Type: DWG ID: 33860
