Stair Section & Plan & Elevation Detail

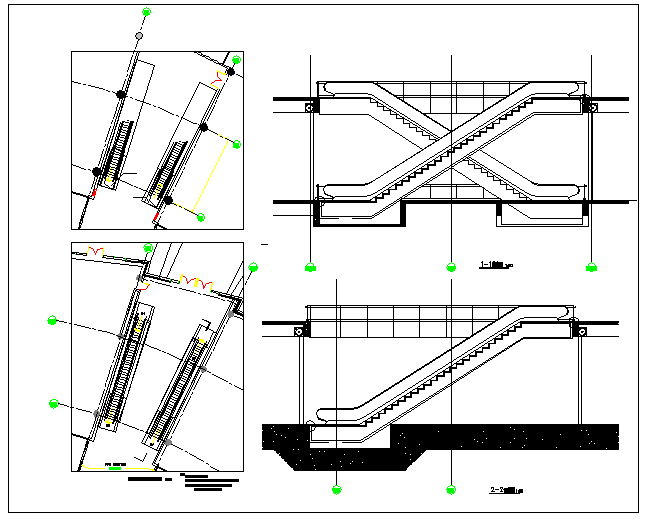

Escalator floor plan two, 2-2 section, 1-1 section, See Section A-70-6 for section 1.2-2, Escalator by 30 ° 800MM wide design, After the escalator order to provide civil installation samples designed to check before construction.
