Guest House Room Plan with Elevation Section and Roof Layout

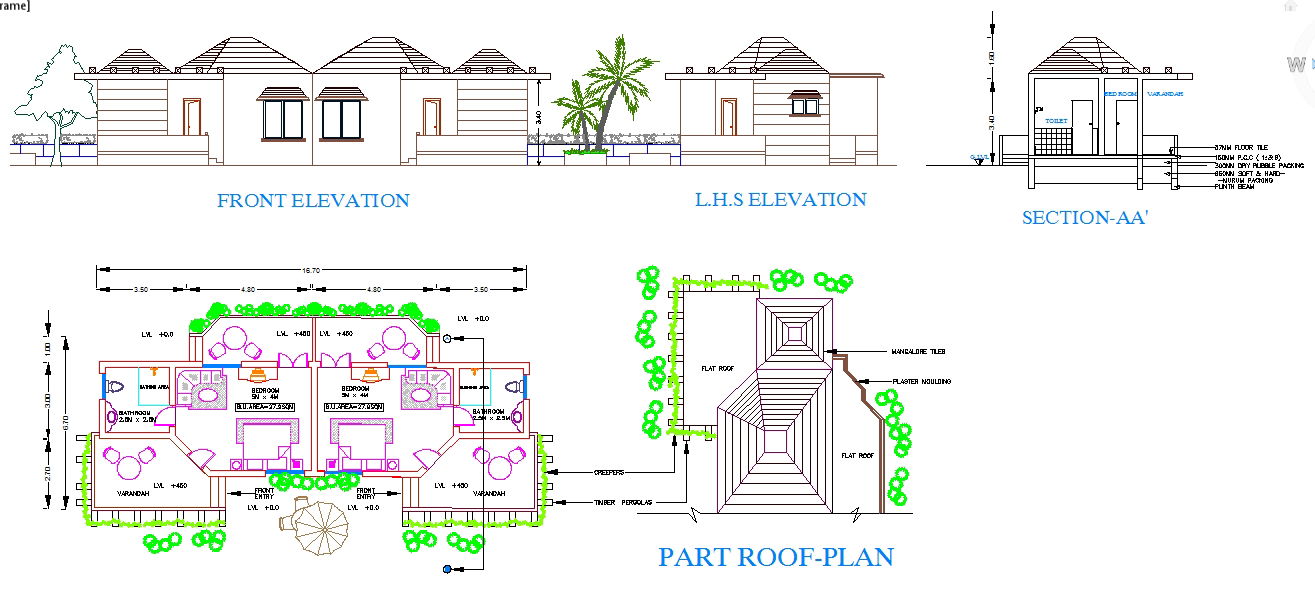

This guest house room plan presents a complete architectural layout prepared in AutoCAD DWG format, including floor plan, front elevation, left side elevation, section AA, and part roof plan. The floor plan shows a symmetrical layout with two bedrooms, attached toilets, a central living space, verandah areas, and entrance porch. The overall building length is approximately 16.70 m with segmented dimensions of 3.50 m and 4.80 m bays. Internal spaces are clearly marked with room levels, door swing positions, window placements, and circulation paths. The plan also includes landscape elements, pathway detailing,g and front open space arrangement for functional guest accommodation planning.
