1. Building Type:

This AutoCAD file represents a G+2 residential house design featuring detailed architectural and structural components.

2. Plot Size & Dimensions:

The layout is designed for a 24’-0’’ x 45’-0’’ plot, providing efficient space utilization for urban residential planning.

3. Ground Floor Layout:

Two shops measuring 9’-3’’ x 23’-0’’ each.
T.V. Lounge sized 7’-9’’ x 16’-0’’.
Bedroom of 10’-9’’ x 10’-0’’.
Bathroom measuring 7’-9’’ x 4’-0’’.
Passage 3’-6’’ wide with staircase access.
Projection area: 2’-6’’ wide.

4. First & Second Floor Layout:

Multiple bedrooms:
10’-9’’ x 12’-3’’
11’-9’’ x 11’-0’’
10’-9’’ x 15’-3’’
Kitchen sized 4’-6’’ x 8’-6’’.
T.V Lounge measuring 11’-9’’ x 12’-0’’.
Bathrooms:
4’-9’’ x 4’-0’’
5’-9’’ x 4’-0’’
5’-3’’ x 4’-0’’
Balcony with 4’-6’’ width.

5. Structural Section Details:

RCC Slab: 5’’ thick.
RCC Beams: 6’’ x 18’’.
Plinth Beam: 9’’ x 18’’.
Column Size: 6’’ x 18’’ with reinforcement schedule.
Wall Section: 4 ½’’ thick with plinth beam detailing.

6. Area Schedule:

Total Plot Area: 1080 sq ft.
Open Area & Covered Area breakdown included.
Ground Floor Covered: 971 sq ft.
First Floor Covered: 971 sq ft.
Total Built-up Area: 2913 sq ft.

7. Door & Window Schedule:

Doors:
D1: 3’-6’’ x 7’-0’’
D2: 2’-6’’ x 7’-0’’
Windows:
W1: 4’-6’’ x 4’-0’’
W2: 3’-0’’ x 4’-0’’
W3: 2’-0’’ x 4’-0’’
W4: 1’-6’’ x 4’-0’’
Ventilators: 2’-0’’ x 1’-6’’.
Gate: 4’-0’’ x 7’-0’’.

8. Additional Drawings Included:

Front elevation with balcony and façade detailing.
Section at X-Y showing slab heights, levels, and RCC distribution.
Site Plan with north direction.
Area Plan representing open and covered area markings.

9. Ideal For:

Architects, civil engineers, interior designers, and students need a complete residential CAD drawing with structural and dimension-accurate details.

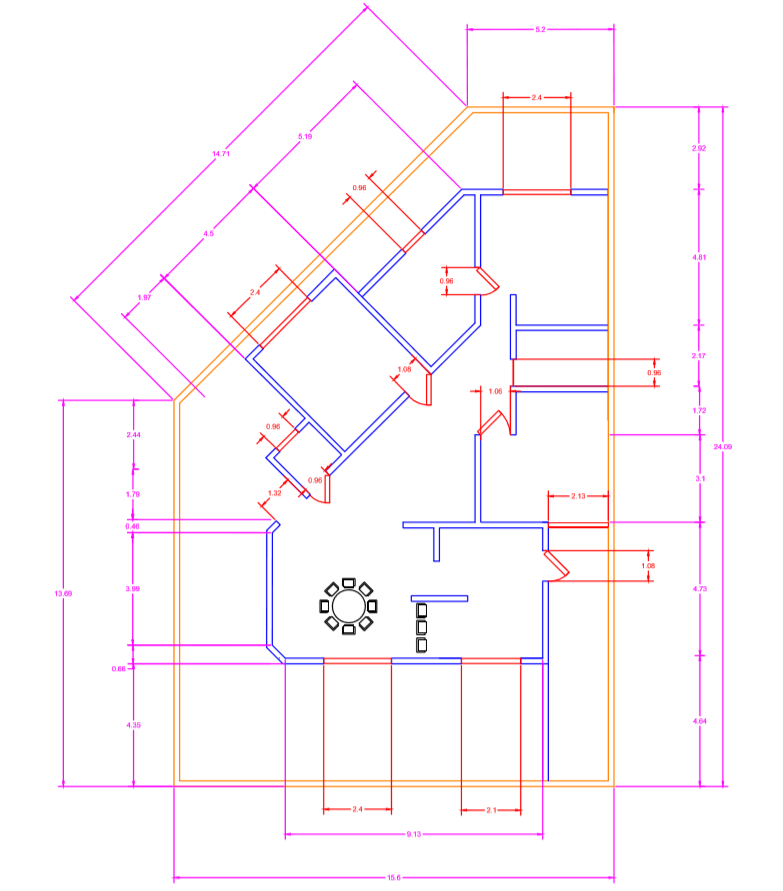

Bungalow Plan
