Three Floor Residential Building Plan Section Elevation Detail

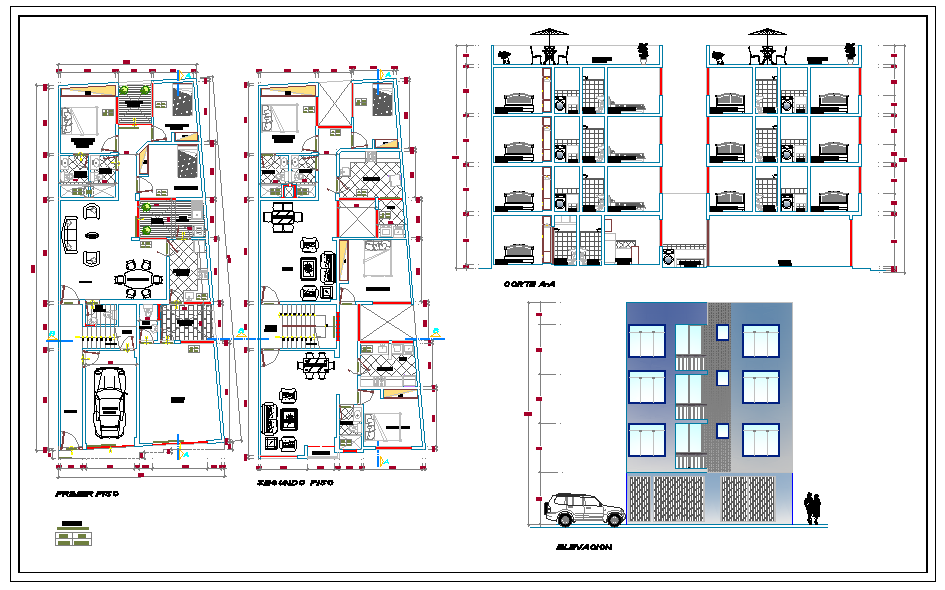

This AutoCAD drawing presents a three floor residential building plan with detailed ground floor plan, first floor plan, sectional view A A, and front elevation. The layout includes living room, bedrooms, kitchen, toilets, staircase, balcony, parking space, and circulation areas with clear scaled dimensions. Section detail highlights floor levels, slab thickness, stair alignment, and structural wall positioning. The elevation shows façade composition, window placement, balcony railing, and entrance gate design. All room measurements, structural alignment, and vertical connections are accurately marked for construction documentation and residential planning reference.
