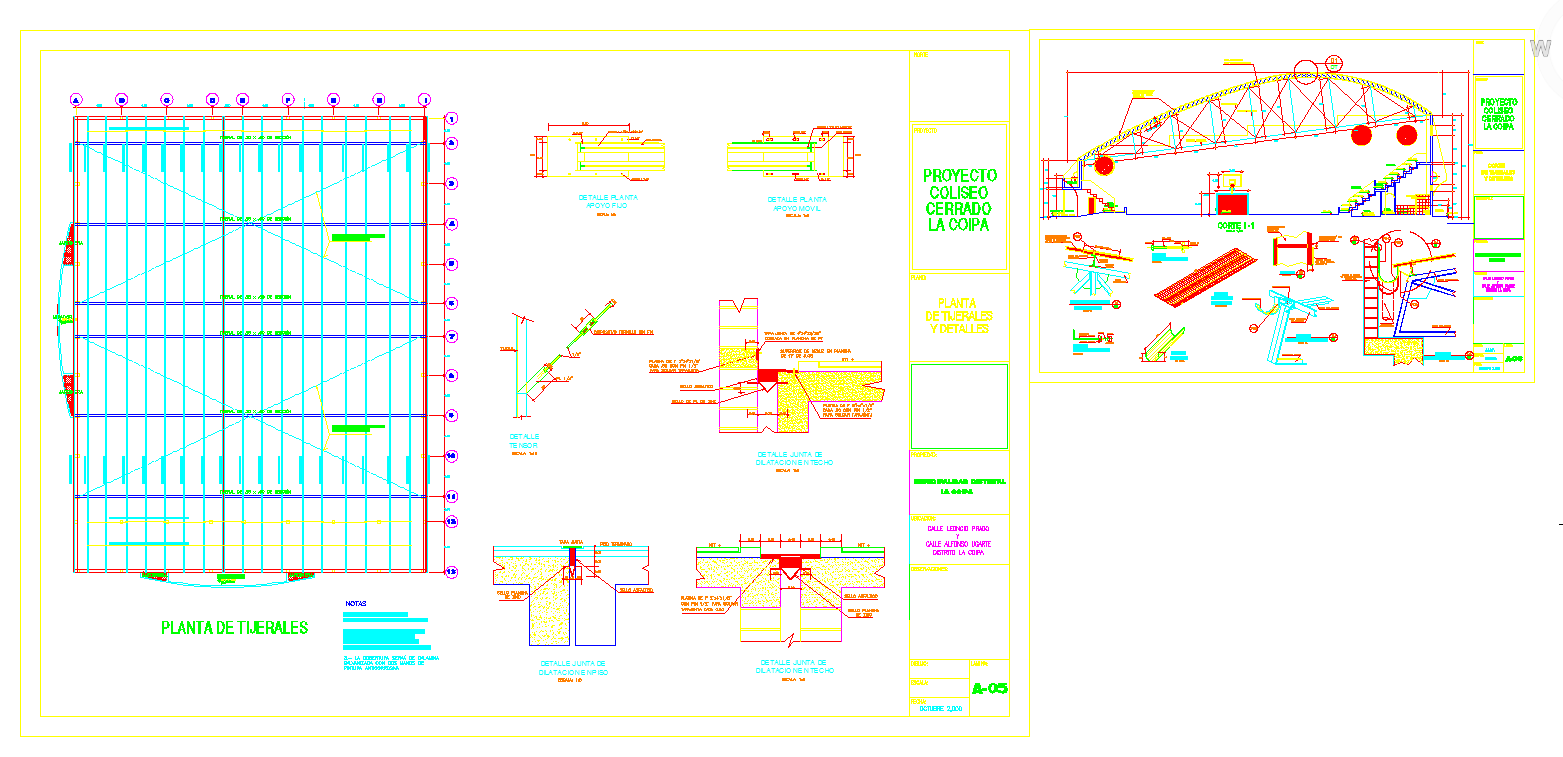

Truss Detail Drawing with Structural Connections and Dimensions

This Truss Detail drawing is prepared in AutoCAD format and presents accurate structural detailing for truss systems. The drawing includes truss layout with member arrangement, node points, and connection locations. Section details explain force transfer through two point load application and joint behavior. Dimensions are clearly marked for span length, member spacing, and connection depth. Fixing details support proper installation and structural stability. The drawing focuses only on truss construction for building and roof structures. It is suitable for precise structural planning and execution reference.
