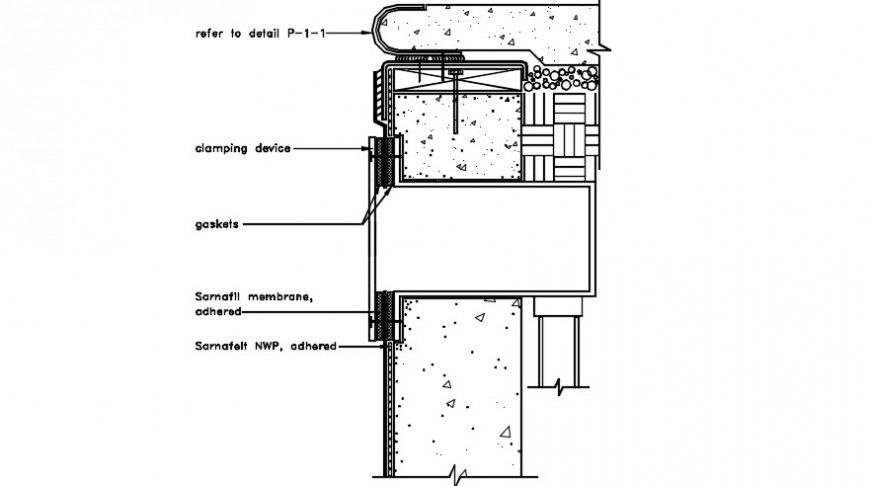

Swimming pool wall membrane placement and plumbing structure details dwg file


Description

Swimming pool wall membrane placement and plumbing structure details that includes a detailed view of cover protection hm separating layer, thermal insulation panel type with shaped plate for bead seaming, waterproofing and slope formation layer and elastic expansion joint details provided. Aluminum joinery stud with  elastic sealing gasket, double sheet glass and Water-resistant concrete treatment, false ceiling of plaster plates and cement-glue adhesive and much more of plumbing details.




File Type: DWG File ID: 78800

Uploaded by:


Eiz Luna
New-Zealand
