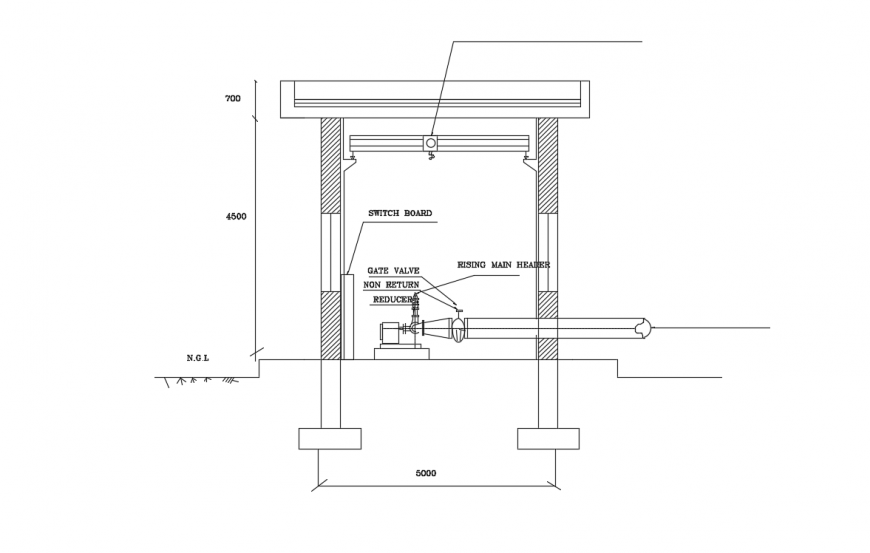

Pumphouse section and plumbing details that include wall section, switchboard, gate valve, non-return, dimensions and hatching and much more of pump house details.
