Main Gate Design Drawing With Lock Latch Height Width Details

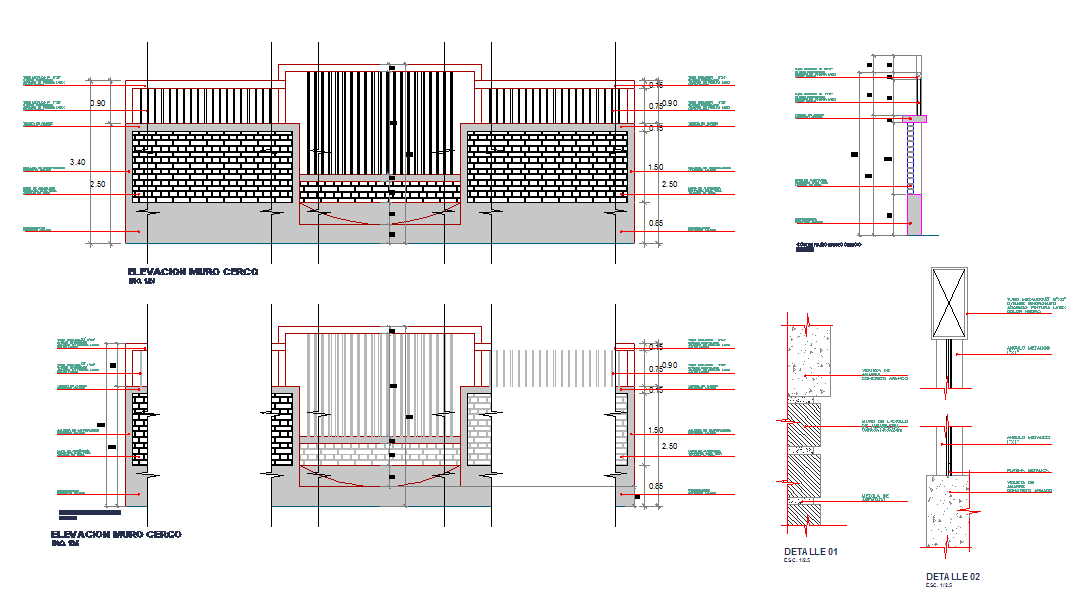

This main gate design drawing is prepared in AutoCAD format and shows a detailed elevation suitable for residential and small commercial entrances. The drawing illustrates a standard main gate layout with overall height generally between 1800 mm and 2100 mm and width ranging from 3000 mm to 3600 mm, allowing smooth vehicle and pedestrian access. It includes gate frame thickness, panel arrangement, hinge location, latch placement, and locking provision to enhance security and controlled movement. The main gate detail drawing helps architects and civil engineers plan a strong and functional entry point that aligns with boundary walls, compound levels, and driveway access. The AutoCAD main gate design file is drafted with clear dimensions, proper annotations, and clean line work for easy understanding during fabrication and site execution. This gate drawing supports builders and interiordesigners in coordinating entry design with fencing, columns, and external finishes.
