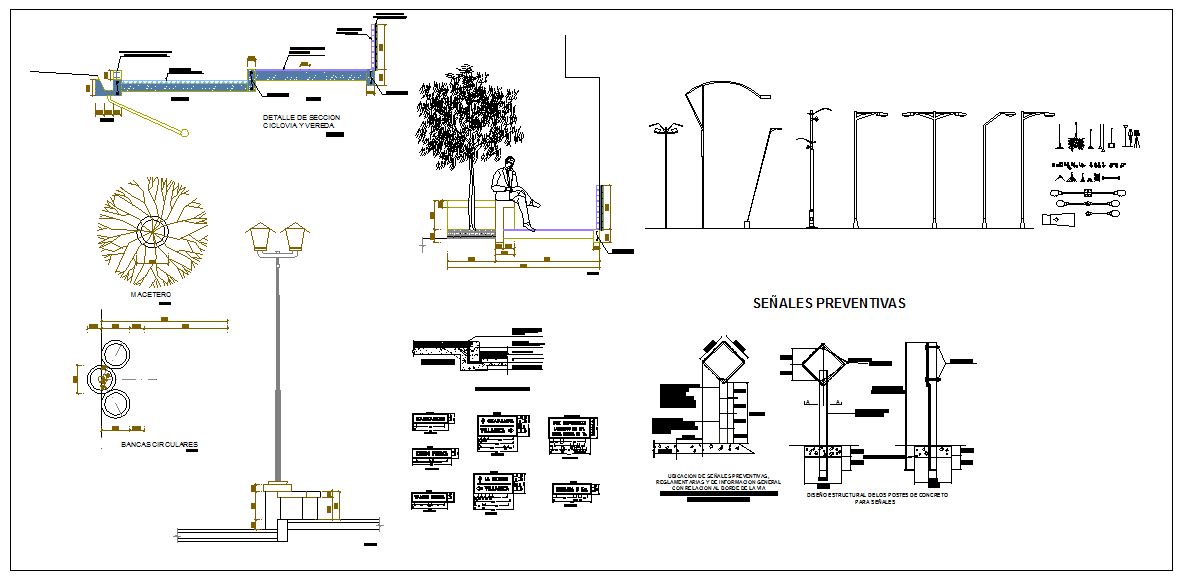

Road Light Design Drawing With Pole Sections Foundations And Details

This road light design drawing presents a complete set of urban lighting details prepared for roadway and public space applications. The drawing includes light pole elevations showing height variations, arm configurations, and luminaire positioning with accurate dimensional references. Foundation and base details illustrate footing depth, concrete block size, anchor bolt arrangement, and underground cable routing for safe installation. Sectional views explain pole embedment, surface level coordination, and the connection between pole base and foundation structure to ensure long-term stability.

The drawing also includes street furniture coordination, such as benches, planters, and pedestrian elements aligned with lighting placement. Preventive road signage details are shown with post fixing methods, height control, and ground connection sections. Dimensional annotations guide correct spacing, alignment, and installation levels for consistent lighting distribution along roads and walkways. This road light design drawing supports civil engineers, urban planners, and contractors in understanding lighting layout, foundation construction, and dimensional accuracy directly from the AutoCAD drawing set.
