Water Storage Tank Design Drawing with Valve Details and Dimensions

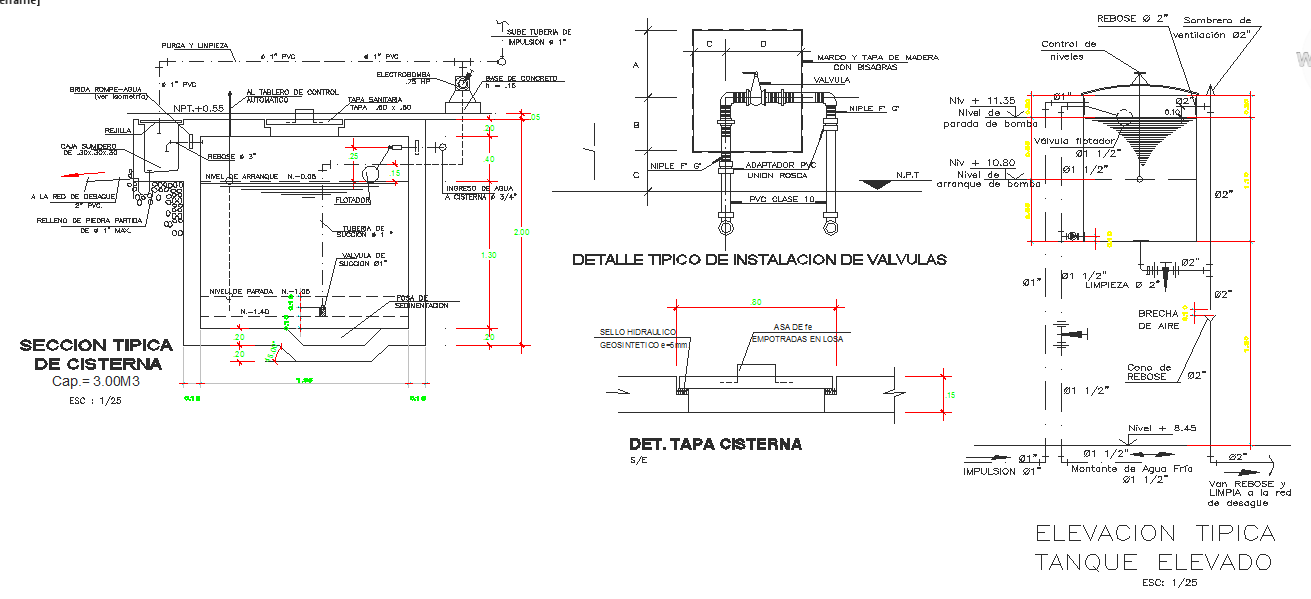

This water storage tank design drawing provides detailed construction information prepared in AutoCAD format, focusing on underground cistern and elevated tank arrangements. The drawing includes typical tank sections showing wall thickness, base slab, waterproofing layers, and internal water level markings. Clear dimensions indicate tank depth, internal capacity reference, and structural offsets. Valve installation details illustrate inlet, outlet, overflow, cleaning pipe, and ventilation connections with accurate pipe diameters and positioning. These drawings help explain water flow control, safety levels, and operational efficiency within the tank system. Additional details cover tank cover construction, including slab thickness, sealing arrangement, and embedded lifting handles. Elevation views explain the relationship between tank height, valve levels, and pumping control points.
