Ceramic Roof Edge Waterproofing Section Detail 27 mm Thickness

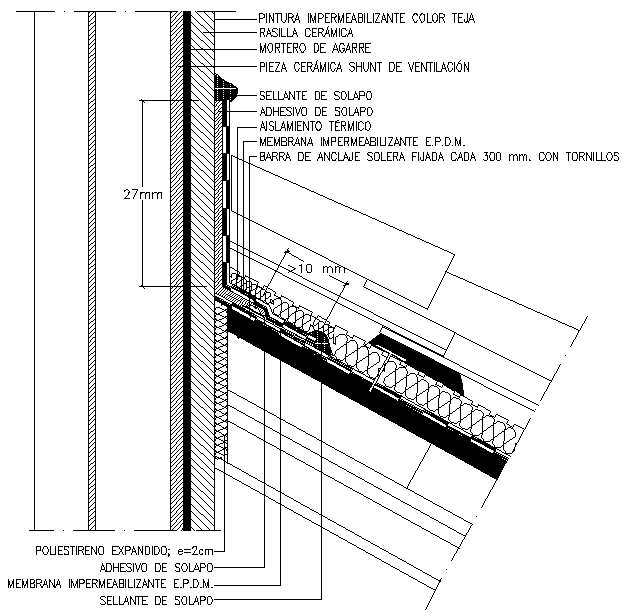

This drawing presents a detailed ceramic roof edge and waterproofing detail with accurate sectional measurements. The section shows ceramic tile layering with pintura impermeabilizante color teja finish, rasilla cerámica base, mortero de agarre, and pieza cerámica shunt de ventilación. It clearly illustrates the 27 mm vertical dimension and 10 mm slope reference, ensuring correct installation thickness and drainage alignment. The roof edge waterproofing system includes membrana impermeabilizante EPDM, sealante de solapo, and adhesivo de solapo applied between overlapping layers for moisture protection. Poliestireno expandido e 2 cm insulation is specified beneath the membrane to improve thermal performance and structural efficiency.
