Parapet Detail CAD Drawing with Roofing Layers and Structural Fixings

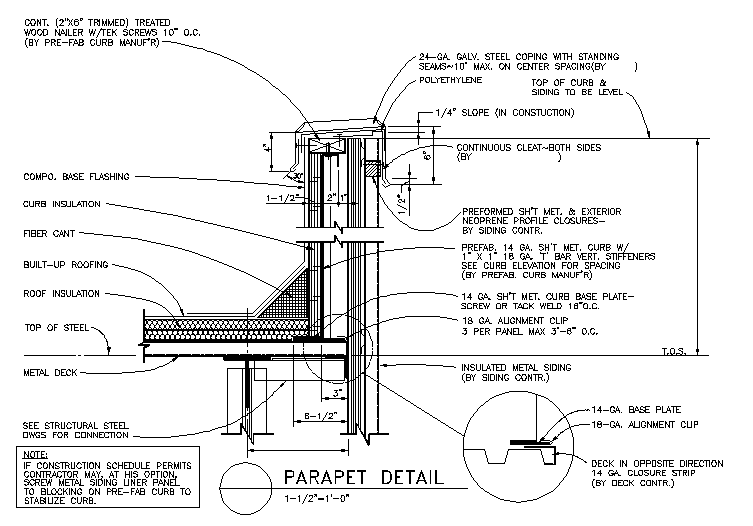

This Parapet Detail CAD drawing presents a highly detailed construction section showing the integration of roof assembly, parapet wall, and exterior cladding systems with precise dimensions. The drawing clearly illustrates built-up roofing layers, metal deck, roof insulation, curb insulation, fiber cant, and continuous cleat fixing on both sides. It includes galvanized steel coping with standing seams, slope indication for drainage, polyethylene protection, and a prefabricated sheet metal curb with stiffeners. Structural connections such as base plates, alignment clips, metal closure strips, and fastener spacing are accurately marked to support correct installation. All components are labeled to assist in understanding load transfer and weatherproofing performance.

The drawing also details wall insulation, exterior siding, neoprene profile closures, and flashing connections between parapet and roof systems. Dimension lines define parapet height, curb width, slope ratios, and fastening intervals, making the file suitable for construction documentation and execution drawings. This AutoCAD DWG file is ideal for architects, civil engineers, and building professionals working on commercial or residential roof edge detailing where accuracy, durability, and compliance with construction standards are essential.
