Storage Tank Design with 6000 Liter Capacity and Section Details

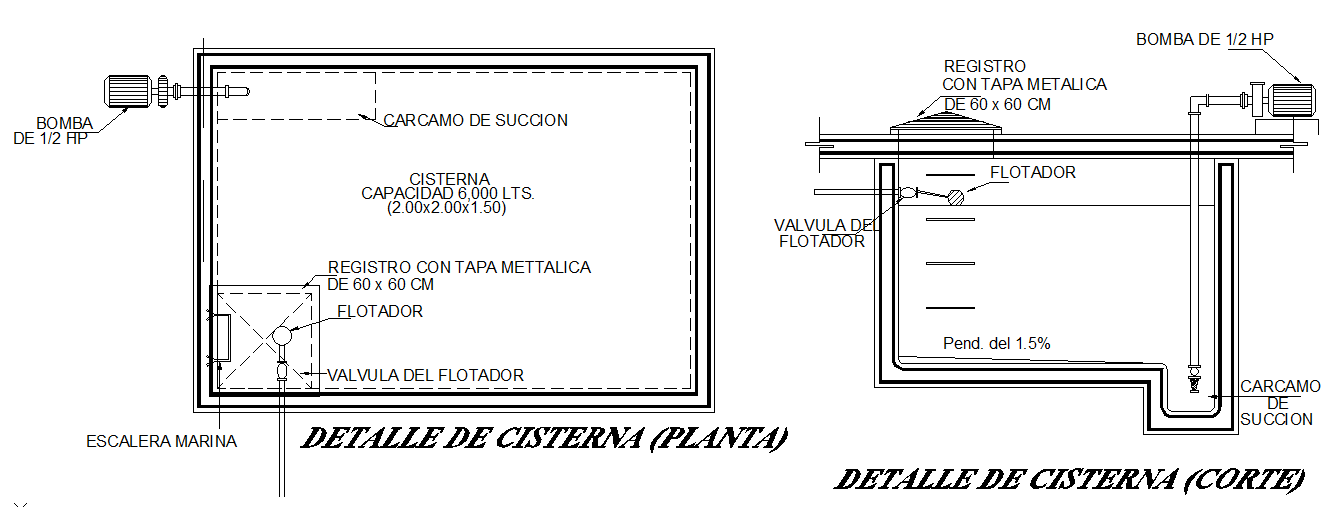

This AutoCAD drawing presents a detailed storage tank design with a clearly defined 6000-liter water storage capacity and accurate dimensional information. The drawing includes a complete plan view and sectional view of the storage tank, showing internal dimensions of 2.00 by 2.00 by 1.50 meters. Key components such as the suction chamber, float valve, float mechanism, metallic cover opening of 60 by 60 centimeters, and access ladder are clearly illustrated. Pipe routing, pump connection of 0.5 HP, and slope details are shown with measurements to support proper water flow and system efficiency. The layout helps in understanding tank depth, wall thickness, base level, and internal arrangement for water storage applications.

The storage tank layout with measurements supports planning and execution for residential, commercial, and utility water systems. Section details explain water level control, suction arrangement, and maintenance access. This storage tank design drawing is suitable for architects, civil engineers, and builders who require clear construction references and accurate dimensional data. The organized drafting style allows easy use and modification in AutoCAD, 3d Max, Revit, and Google SketchUp workflows, making it a reliable reference for storage tank planning and installation.
