Roofing structure detailing drawings 2d view autocad software file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

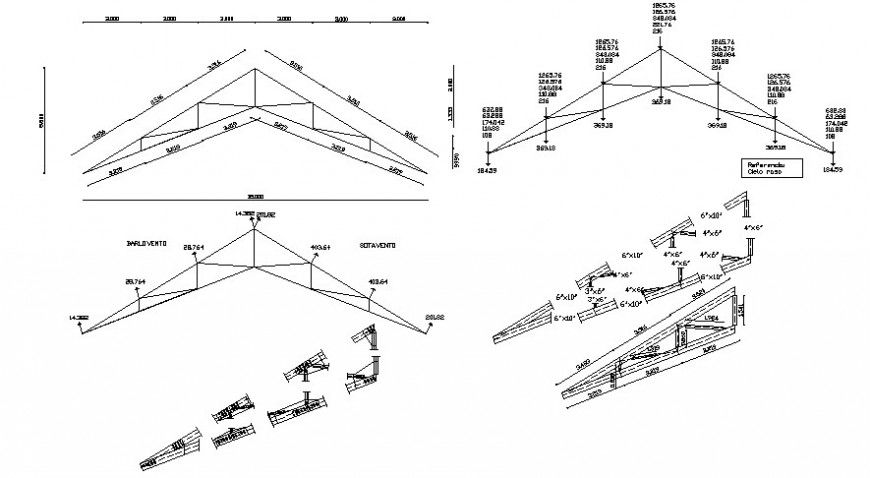

Roofing structure detailing drawings 2d view autocad software file that shows roofing structure struts details long with roofing structure parts details of purlin principal rafter main and sag tie roofing material details.
File Type:
DWG
File Size:
174 KB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#roof section#pitch and rise#span#principal rafter#roofing material#main and sag tie#autocad drawing#2d view#downloads#free#autodesk#files#cad drawing.
