Steel Detail DWG with Reinforced Edge, Chamfer, Rebar and Drip Section

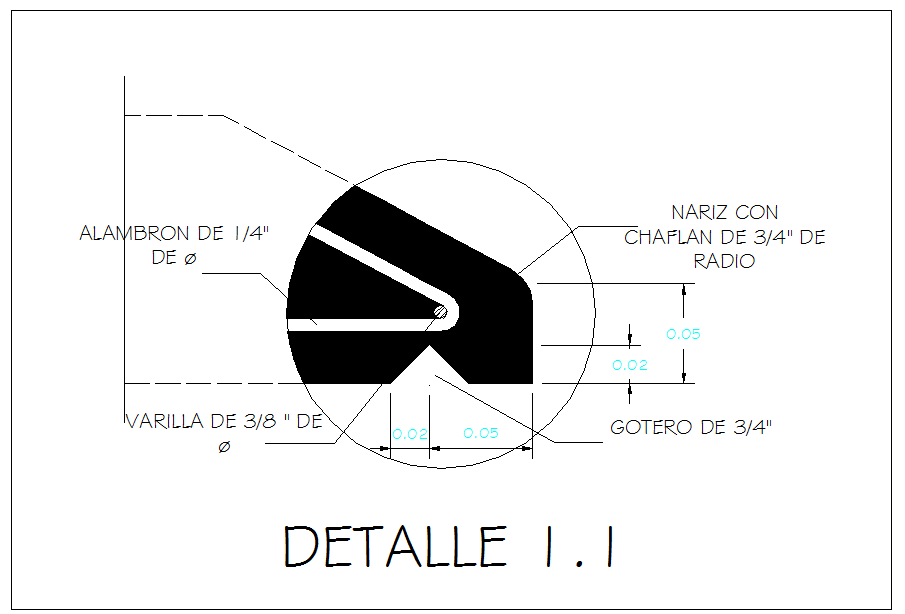

This Steel Detail DWG (Detalle 1.1) presents a precise reinforced concrete edge with a chamfered nose, drip groove, and embedded steel rods. The drawing highlights the 3/8" diameter rebar, 1/4" wire reinforcement, and accurate spacing for proper installation and concrete finishing. Architects, engineers, and builders can utilize this detailed view to plan, fabricate, and integrate structural edges in walls, slabs, or other reinforced elements with exact measurements and construction clarity.
