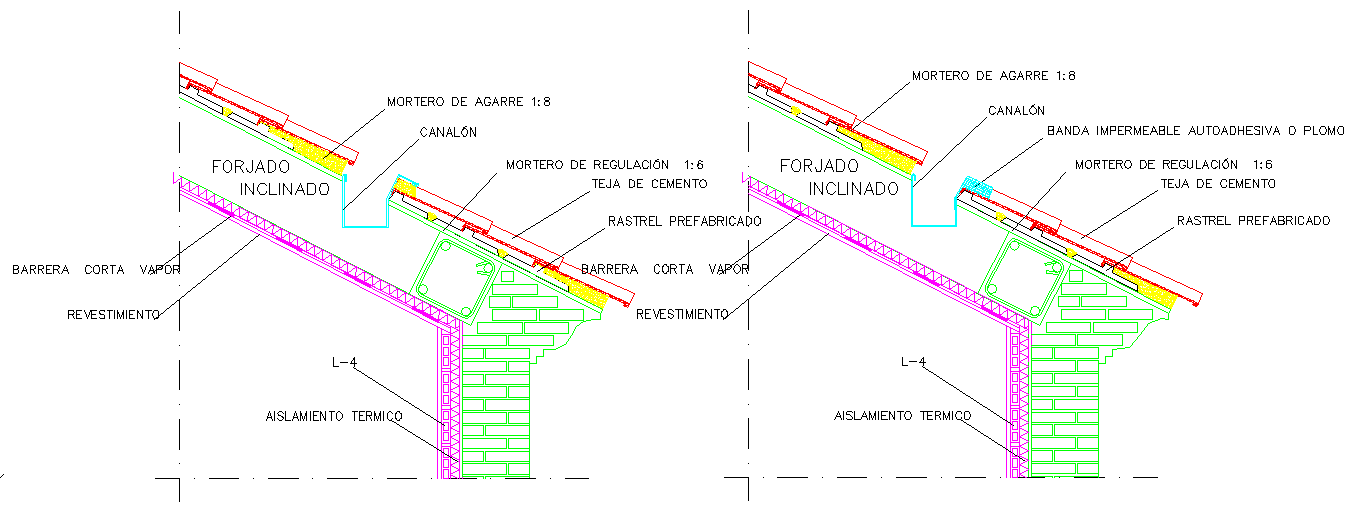

Tiles Roof Detail Drawing with Slope Thickness and Layer Details

This tile roof detail drawing is a professionally prepared AutoCAD file that illustrates roof tile construction with clear sectional detailing and accurate measurements. The drawing shows roof slope angle, tile thickness, base layer arrangement, and supporting slab dimensions. Each construction layer is properly labeled, including tile finish, bedding layer, waterproofing treatment, and structural slab. Dimension lines and level indicators are clearly marked to help users understand height variation, slope direction, and the tile placement method used in tiled roofing systems.
