Storage Tank Detail DWG Showing Underground Tank Pump and Piping

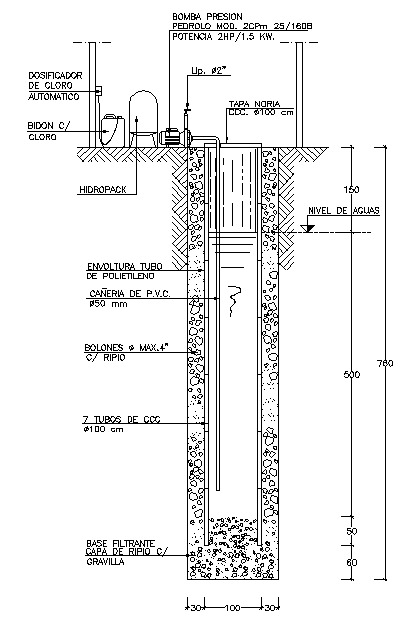

This Storage Tank Detail DWG file presents a clear construction section of an underground water storage tank with a pump and piping arrangement. The drawing shows a vertical tank chamber with defined depth and width, including a polyethylene pipe casing, a PVC pipe of 50 mm diameter, and gravel filter layers at the base. The section illustrates water level marking, concrete cover slab, access opening, and surrounding soil layers. Equipment such as a pressure pump of 2 HP capacity, an automatic chlorine doser, a chlorine container, and a hydropack unit is clearly positioned at the top level. Dimensions such as tank depth up to 700 cm, base filter thickness, and cover slab width are marked for accurate construction reference.
