House Elevation and Section Drawings with Dimensions DWG File

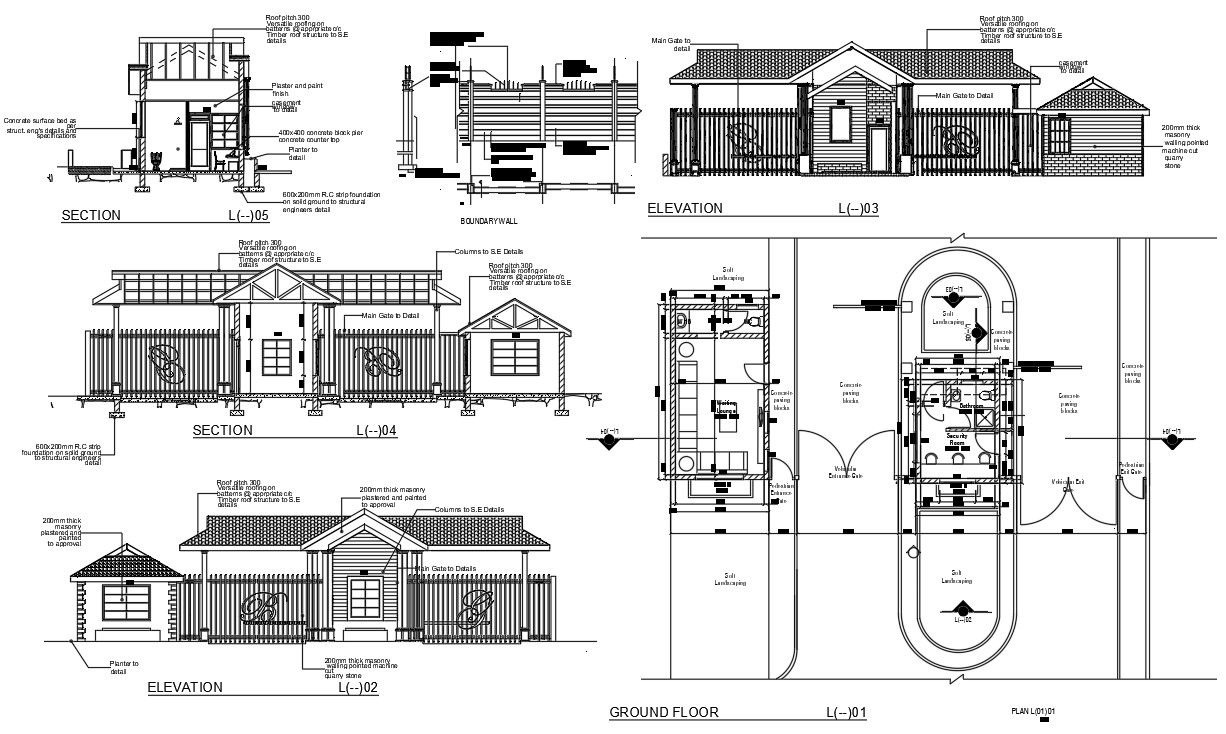

The House Elevation and Section Drawings with Dimensions DWG File offers complete architectural and structural elevation views along with sectional details essential for residential construction documentation. This drawing set includes front, rear, and side exterior elevations showing height levels, window and door placements, roof profiles, wall finishes, and architectural detailing. The sectional drawings illustrate vertical cuts through the building, highlighting floor slab thickness, ceiling heights, foundation depth, staircase section, beam and column details, and room level differences. Each view contains precise measurements, level markings, and annotated elements that provide clarity to builders, contractors, and designers for accurate execution.
