Concrete Wall Section DWG File with Reinforcement and Drainage Details

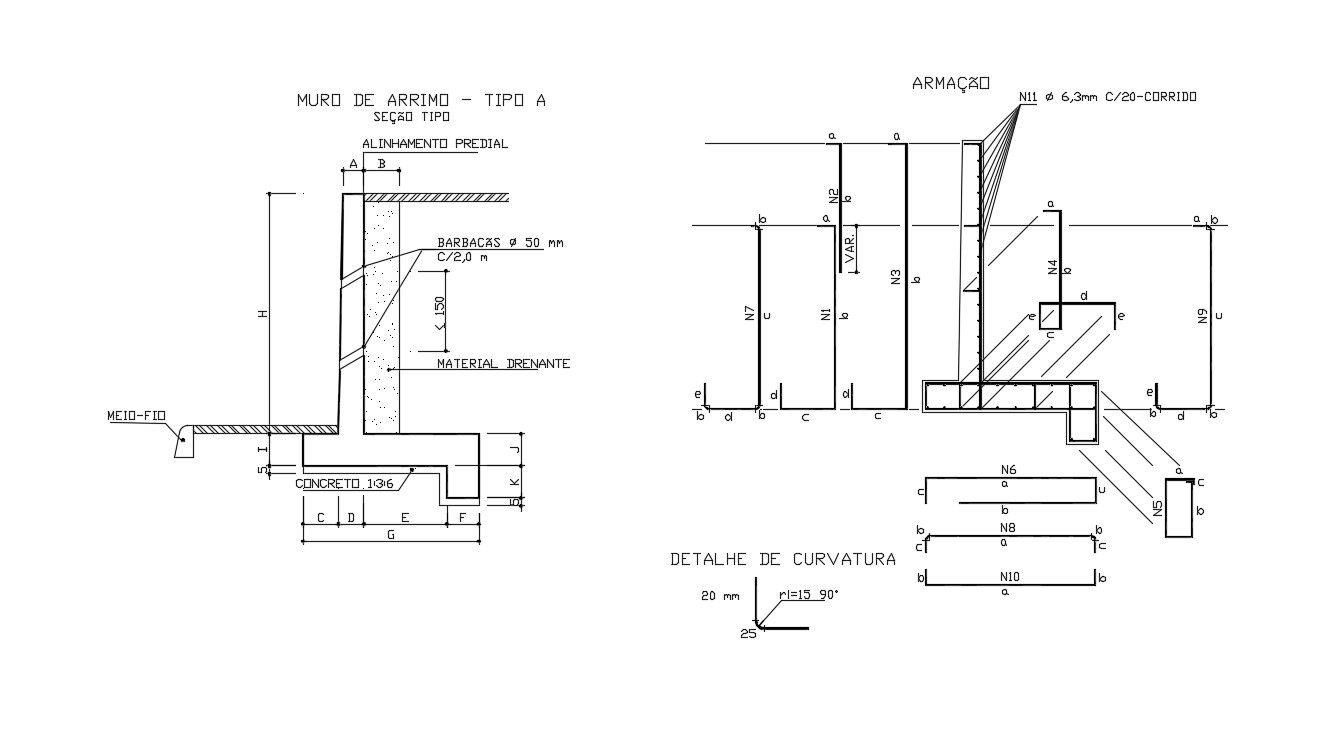

This concrete wall section DWG file provides detailed AutoCAD drawings for reinforced concrete retaining and structural walls used in residential, commercial, and infrastructure projects. The file includes complete sectional views showing wall thickness, footing dimensions, drainage material placement, weep hole locations, concrete grade specifications, and reinforcement bar arrangements. It also displays foundation offsets, backfill layers, alignment references, and slope protection details to support accurate construction and site coordination.

The concrete wall section drawing is useful for architects, civil engineers, structural designers, and contractors who require precise technical documentation. It includes material schedules, bending details, anchoring systems, and load distribution references. The AutoCAD file is compatible with 3D Max, Revit, and SketchUp for modeling and presentation purposes. This DWG file helps improve structural safety, reduce construction errors, and streamline detailing work for wall and foundation projects.
