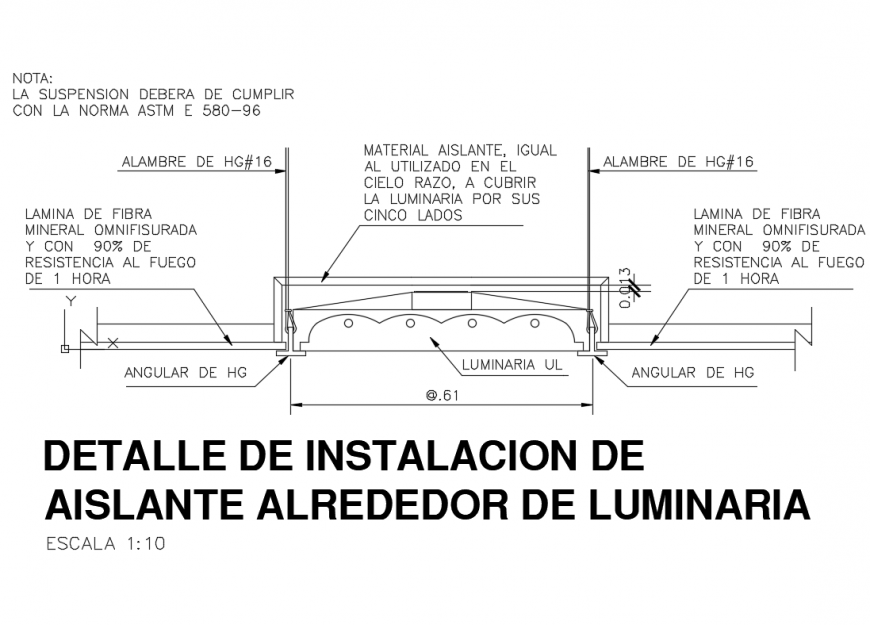

Detail of insulation around luminaire of suspended ceiling dwg file


Description

Detail of insulation around luminaire of suspended ceiling that includes a detailed view of sheet of mineral fiber omnifisurada and with 90% of resistance to the fire of 1 hour, insulating material, equal to the used in the sky, to cover the luminaria by its five sides, lamina of mineral fiber omnifisurada and with 90% of resistance to the fire 1 hour and much more of ceiling details.




File Type: DWG File ID: 137692
