Shop Layout Details with Office Reception and Break Room design

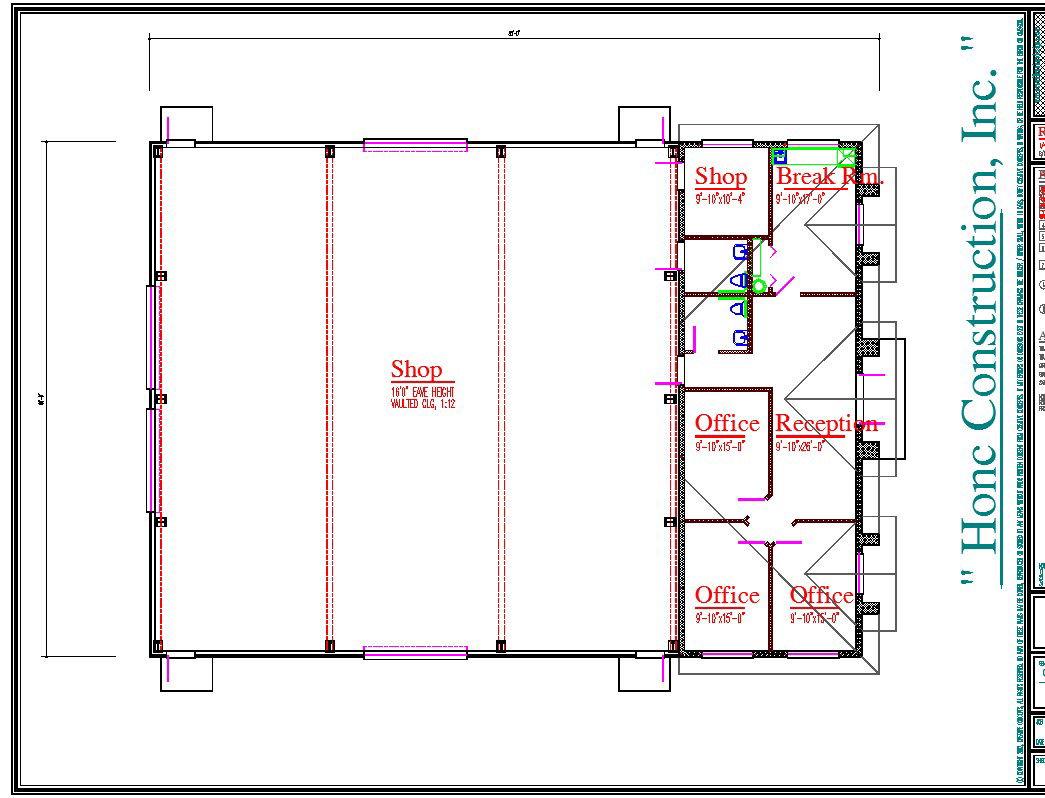

This AutoCAD drawing presents a shop layout detail with office reception and break room clearly dimensioned. The shop layout plan includes the main shop hall area with structural grid alignment and wall positioning. Office rooms are arranged along one side with defined internal partitions, door swing, and circulation path. The reception area is located near the entry for access control and workspace coordination. The break room layout shows service counter seating and utility placement. Dimension annotations specify room width, length, hall span, and wall thickness, ensuring accurate commercial space planning and execution.
