Foundation Section Detail With 9 Inch Load Bearing Wall Footing

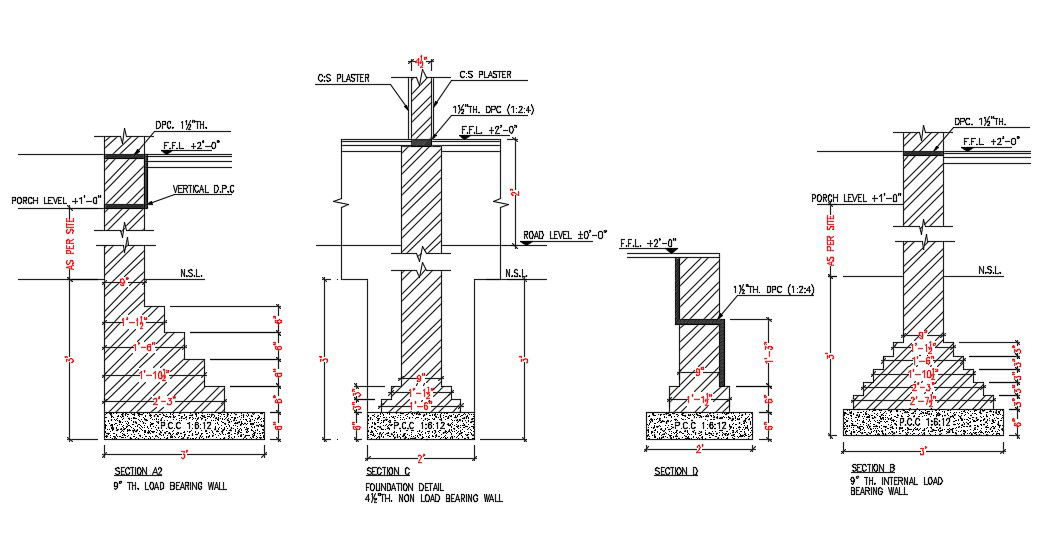

The foundation section detail with 9 inch load bearing wall footing drawing shows structural sections used for residential foundation construction. The drawing includes multiple sectional views, such as section A2, section C, section D, and section B, presenting foundation details for both load-bearing and non-load-bearing walls. The 9-inch thick load-bearing wall foundation is supported by stepped brick footing layers placed over a PCC 1:2:4 concrete base, providing stable structural support below the wall. The drawing also indicates porch level plus 1 foot, floor finish level plus 2 foot and road level references that explain vertical height relationships within the foundation structure. Damp proof course layer of half-inch thickness is provided above the wall base to prevent moisture penetration into the masonry wall structure.
