Clothing Shop Layout CAD Drawing and DWG with Fitting Room Plan

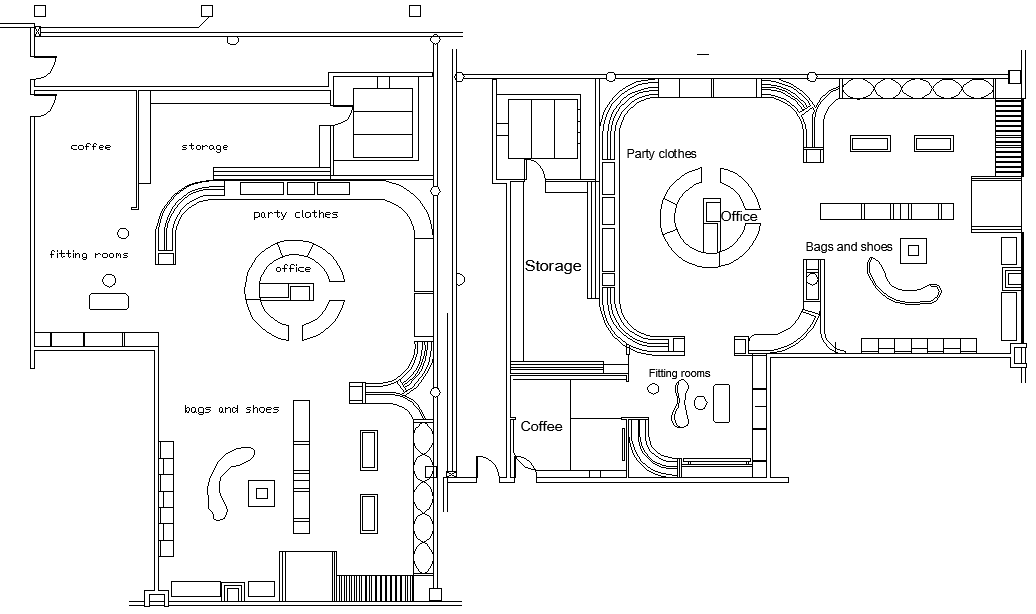

The Clothing Shop Layout CAD Drawing provides a professionally designed retail store planning layout prepared for fashion store interior design and commercial retail architecture. This AutoCAD DWG file includes a detailed clothing shop layout CAD drawing showing product display zones, fitting rooms, storage areas, cashier desk space, and circulation pathways for customer movement. The drawing clearly illustrates clothing display racks arranged around the central retail area labeled party clothes, while additional sections, such as bags and shoes display counters, are organized to maximize product visibility. The clothing shop layout CAD drawing also includes fitting rooms positioned along the side walls to provide convenient customer access. Typical retail planning measurements, such as approximately 1200 mm circulation space and display counters around 600 mm depth, can be interpreted within the layout.
