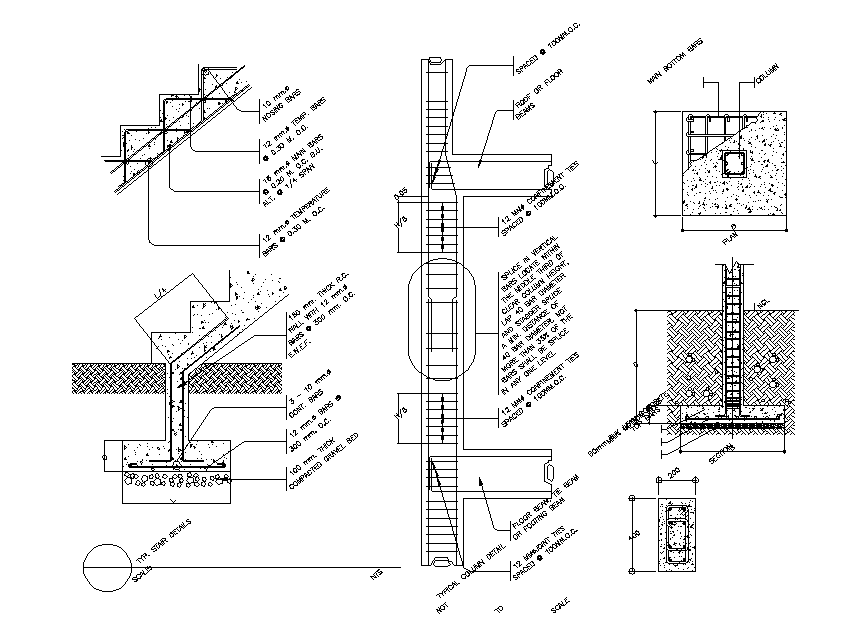

Column And Wall Footing Reinforcement Section CAD Drawing DWG File


The construction column and wall footing section CAD drawing that shows 150 mm thick RCC wall splice in vertical bars locate within the middle third of clear column height, lap 40 bar diameter and stagger splice a min. distance of 40 bar diameter, not more than 33% of the bars shall be splice in any one level. Thank you for downloading the AutoCAD file and other CAD program from our website.

File Type: DWG File ID: 170454
