Plinth Beam With Foundation Section Drawing DWG File

Plinth Beam With Foundation Section Drawing DWG File

Tags

#beam dwg#beam drawing#beam section dwg#plinth beam dwg

Turn floor plans into photoreal 3D in minutes.

Upload your drawings, describe the vision, and generate four cinematic 3D views. Built for working architects and interior designers.

Try AI Now →

Ratings & Reviews

⭐
No Reviews Yet

Be the first to share your experience with this product. Your review helps others make better decisions!

★★★★★

Description

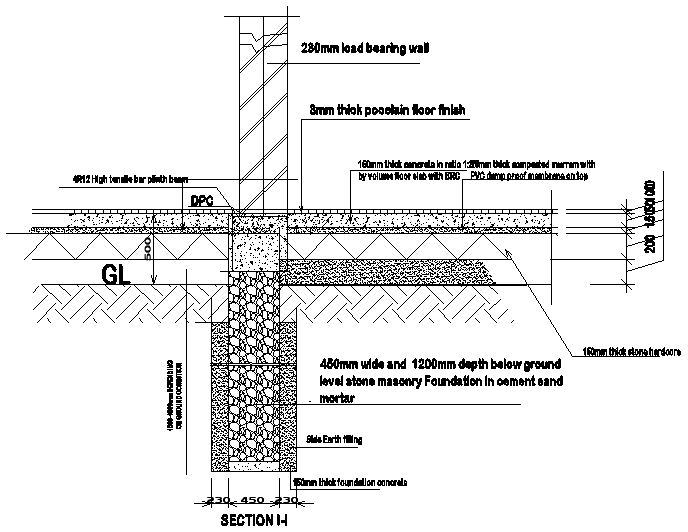

the RCC plinth beam and column footing foundation section CAD drawing that shows 230mm load bearing wall, 8mm thick porcelain floor finish, 150mm thick concrete in ratio 1:3:6 by volume floor slab with BRC, 75mm thick compacted marram with PVC damp proof membrane on top and 450mm wide and 1200mm depth below ground level stone masonry Foundation in cement sand mortar detail. Thank you for downloading the AutoCAD file and other CAD program from our website.
icon

File Type:

DWG
icon

Category::

Construction
icon

Sub Category::

Column Details
icon

type:

Free
