Corporate Office Foundation Layout Plan And Section CAD Drawing DWG File
Tags
#foundation plan#civil drawing#construction detail#footing detail#autocad drawing file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

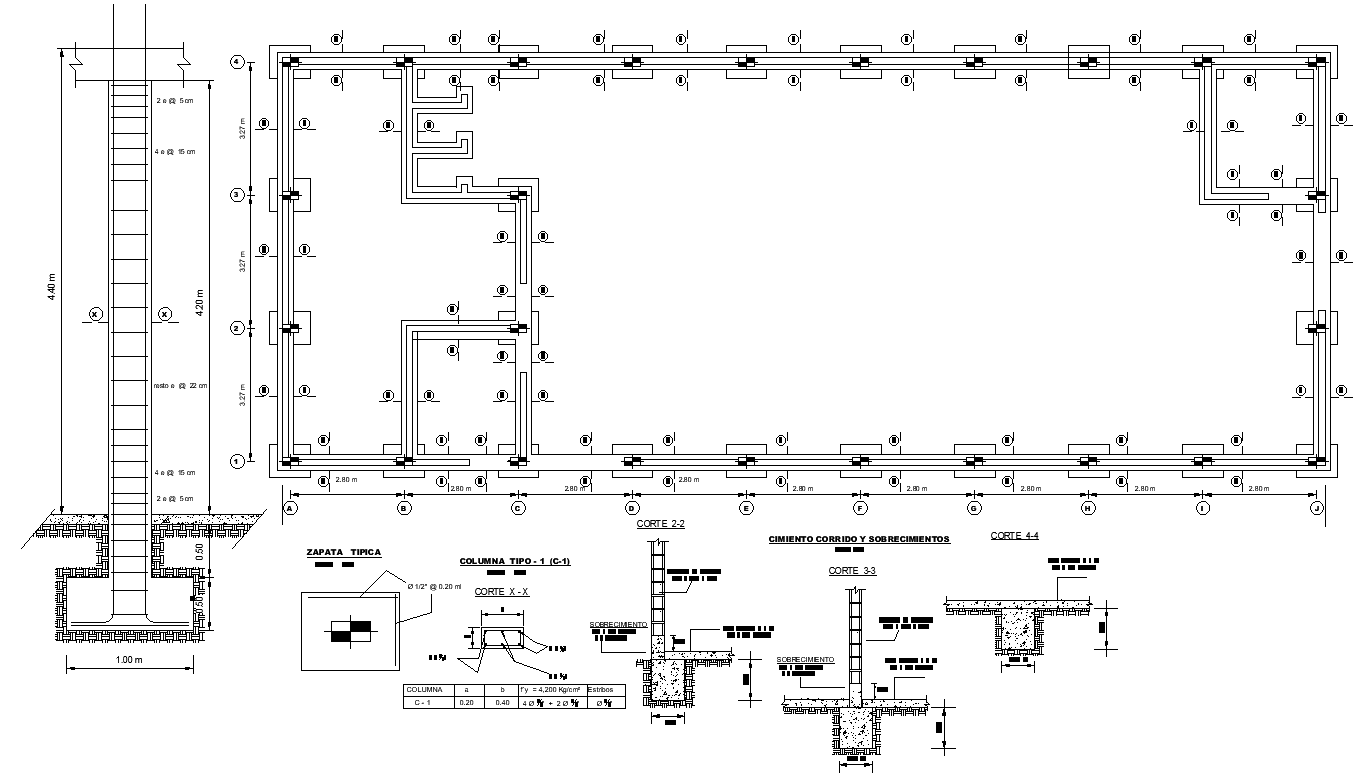

The corporate office foundation plan and section AutoCAD drawing that shows 28X15 meter plot size, floored foundation and surfaces, floored foundation and surfaces 0.15x0.20x0.40, surface f'c = 140 kg / cm2. h = indicated, the column footing spared sheet 1.00 meter and 0.50 meter depth of foundation. For more details download the AutoCAD drawing file. Thank you for downloading the AutoCAD drawing file and other CAD program files from our website.
