Slab Reinforcement Detail with Parapet Section and 4 Inch Drain Pipe

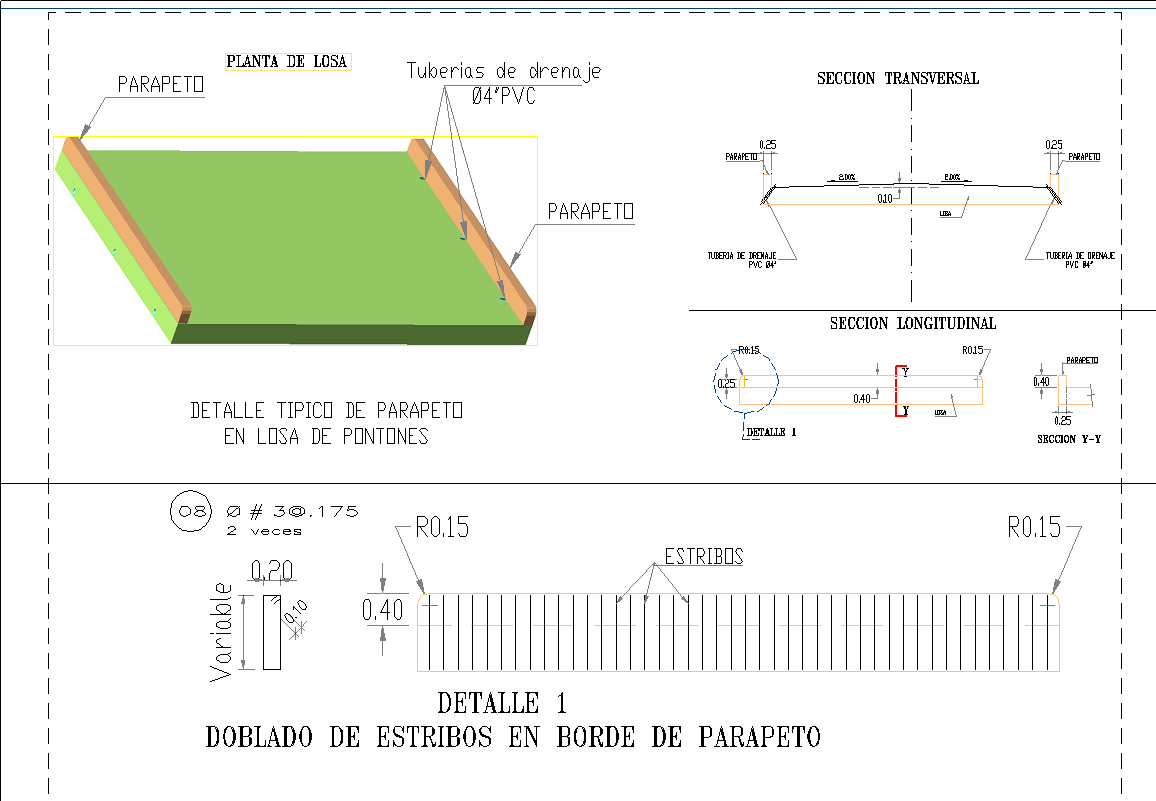

This AutoCAD drawing presents a slab reinforcement detail with parapet section and 4 inch drain pipe prepared for reinforced concrete roof slab construction. The drawing illustrates the reinforcement arrangement used in slab and parapet border construction, including bending of stirrups at the parapet edge. The section detail explains how reinforcement bars are arranged along the slab perimeter to provide structural support and load distribution. The drawing also demonstrates the integration of drainage elements within the roof slab system, including a drainage pipe with approximately 4 inch diameter. These details help in understanding the relationship between slab reinforcement, parapet wall structure, and roof drainage installation.
